WAGO 2857-101

2857-101 WAGO 2857-101

WAGO 2857-101
Part # 2857-101
Condition New
Price: $ 46.75

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

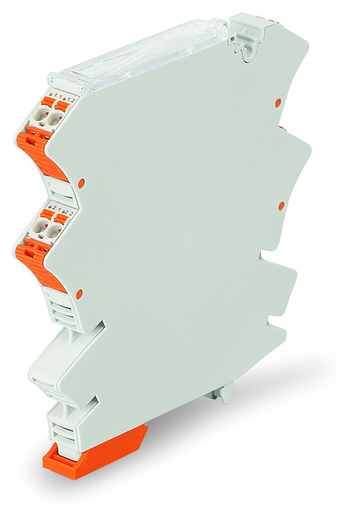

Empty housing
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Empty housing

Features

  • picoMAX® Female Connectors, with coding keys, 2-pole
  • Pre-assembled unit
  • Flexible conductor termination
  • Customizable connection levels
  • Various marking options available
  • Sealable, transparent cover
  • Commoning via jumpers (859-402)

Approvals

  • UL International Germany GmbH, UL, E45172, UL 1059

Specifications

Ratings Per Iec/En 60664-1

  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 16 A

Ratings Per Ul 1059

  • Rated current UL (Use Group D): 10 A
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group D): 300 V

Ratings Per Csa

  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 15 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection Data

  • Pole No.: 2
  • Number of levels: 2
  • Number of jumper slots: 4
  • Connection technology: Push-in CAGE CLAMP®
  • Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
  • Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.2 … 1.5 mm² / 24 … 16 AWG
  • Fine-stranded conductor; with uninsulated ferrule: 0.2 … 2.5 mm² / 24 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 12.5 mm / 0.492 inch
  • Height: 108 mm / 4.252 inch
  • Depth from upper edge of DIN-rail: 107 mm / 4.213 inch
  • Pin spacing: 5 mm / 0.197 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Flammability class per UL94: V0
  • Housing material: PC
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Fire load: 1.384 MJ
  • Weight: 59.974 g

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 70 °C
  • Surrounding air temperature (storage): -40 … 85 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821561392
  • Customs tariff number Sales Organisation Germany: 85489090990
: *
: *
: *
