WAGO
»
Electronics
»
Series 857
»
WAGO 857-820
WAGO 857-820
857-820 WAGO 857-820
OutOfStock
OutOfStock
Part #
857-820
Manufacturer
Wago
GTIN
4050821053002
Condition
New
Quantity
Price
*Note:
Price:
$
350.90
Please Contact Us for Stock Availability
Qty
1
Add to cart
Order by 3PM MST (subject to stock availability) same day shipping available!
JUMPFLEX® transducer; KTY transducer; light gray
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend

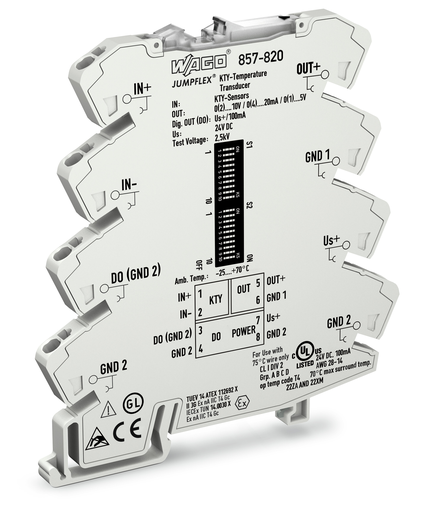

JUMPFLEX® transducer; KTY transducer; light gray
Features
Supports all standard KTY sensors
Calibrated measurement range switching
Clipping capability for analog signal limitation to output end values
Safe 3-way isolation with 2.5 kV test voltage per EN 61140
Approvals
Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
TUEV Nord Cert GmbH, IECEx, TÜV_14_ATEX_112692_X, EN 60079-0
Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00144/19, TP TC 012/2011
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
Polski Rejestr Statków, PRS, TE/2186/880590/18
CQST/CNEx, CCCEx, 2020312310000210, CNCA-C23-01
UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
Specifications
Configuration
Configuration options: DIP switch
Input
Input signal type: KTY sensors
Input voltage (max.): ±30 VDC
Input – Kty Sensors
Sensor types (KTY): KTY81-110 || KTY81-120 || KTY81-121 || KTY81-122 || KTY81-150 || KTY81-210 || KTY81-220 || KTY81-221 || KTY81-222 || KTY81-250 || KTY82-110 || KTY82-120 || KTY82-121 || KTY82-122 || KTY82-150 || KTY82-220 || KTY82-221 || KTY82-222 || KTY82-250 || KTY83-110 || KTY83-120 || KTY83-121 || KTY83-122 || KTY83-150 || KTY83-151 || KTY84-130 || KTY84-150 || KTY84-151 || KTY16 || KTY19 || ST13 || ST20
Sensor connection: 2-wire
Output – Analog
Output signal type: Current || Voltage
Output signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
Load impedance (voltage output): ≥ 2 kΩ
Load impedance (current output): ≤ 600 Ω
Output – Digital
Switching voltage (DO) (max.): Supply voltage (applied)
Continuous current (DO) (max.): 100 mA (no internal restriction)
Signal Processing
Step response (typ.): 50 ms
Measurement Error
Transmission error (typ.): ≤ 0.1 % of upper-range value
Supply
Power supply type: 24 VDC
Nominal supply voltage US: DC 24 V
Supply voltage range: ±30 %
Power consumption at nominal supply voltage: ≤ 40 mA (+ IDO)
Test Voltage
Test voltage (input/output/supply): AC 2.5 kV; 50 Hz; 1 min
Connection Data
Connection technology: Push-in CAGE CLAMP®
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Strip length: 9 … 10 mm / 0.35 … 0.39 inch
Physical Data
Width: 6 mm / 0.236 inch
Height: 94 mm / 3.701 inch
Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Color: Light gray
Fire load: 0.000 MJ
Weight: 35.500 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C
Surrounding air temperature (storage): -40 … 85 °C
Relative humidity: 5 … 95 % (no condensation permissible)
Operating altitude (max.): 2000 m
Standards And Specifications
Conformity marking: CE
EMC immunity to interference: EN 61000-6-2
EMC emission of interference: EN 61000-6-4
Commercial Data
Packaging type: Bag
Country of origin Sales Organisation Germany: DE
GTIN: 4050821053002
Customs tariff number Sales Organisation Germany: 85437090300
