WAGO 857-1494

857-1494 WAGO 857-1494

WAGO 857-1494
Part # 857-1494
Manufacturer Wago
GTIN 4050821099826
Condition New
Price: $ 44.52

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

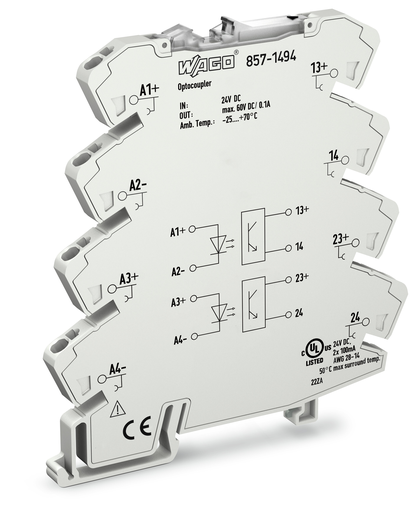

Optocoupler module; 2-port; Nominal input voltage: 24 VDC; Output voltage range: 9 … 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Yellow status indicator; Module width: 6 mm
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Optocoupler module; 2-port; Nominal input voltage: 24 VDC; Output voltage range: 9 … 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Yellow status indicator; Module width: 6 mm

Features

Approvals

  • UL International Netherlands B.V., UL, E175199 Sec.4, UL 508

Specifications

Notes

  • Note: Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

Control Circuit

  • Nominal input voltage UN: DC 24 V
  • Input voltage range (low level): DC 0 … 5 V
  • Input voltage range (high level): DC 16.8 … 31.2 V
  • Nominal input current at UN: 5.6 mA

Load Circuit

  • Circuit type: 2-way || 2-wire connection
  • Limiting continuous current: 0.1 A
  • Nominal output voltage: DC 24 V
  • Output voltage range: DC 9 … 60 V
  • Voltage drop at output (max.): ≤ DC 2 V
  • Leakage current at rated voltage: ≤ 25 µA
  • Turn-on time: ≤ 20 µs
  • Turn-off time: ≤ 120 µs
  • Switching frequency: ≤ 1.5 kHz

Signaling

  • Status indicator: Yellow LED

Safety And Protection

  • Dielectric strength, control/load circuit (AC, 1 min): 2.5 kVrms
  • Dielectric strength, channel/channel (AC, 1 min.): 4 kVrms
  • Protection type: IP20

Connection Data

  • Connection technology: Push-in CAGE CLAMP®
  • Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 6 mm / 0.236 inch
  • Height: 94 mm / 3.701 inch
  • Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Fire load: 0.405 MJ
  • Weight: 30.200 g

Environmental Requirements

  • Surrounding air temperature (operation at UN): -25 … 70 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 95 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 61000-6-2 || EN 61000-6-3 || EN 61373 || EN 61010-2-201 || UL 508 (max. 50 °C/0.1 A)

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821099826
  • Customs tariff number Sales Organisation Germany: 85365005000
: *
: *
: *
