WAGO
»
Electronics
»
Series 787
»

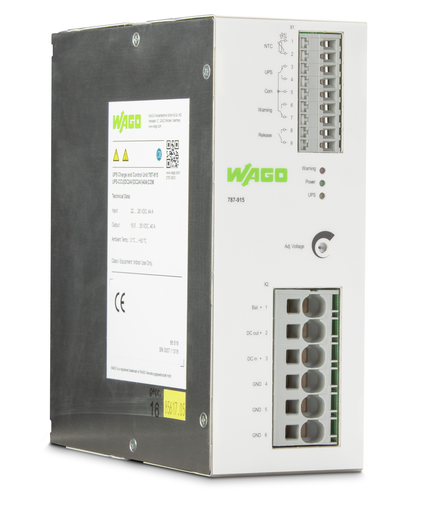

WAGO 787-915
WAGO 787-915
787-915 WAGO 787-915
OutOfStock
OutOfStock
Part #
787-915
Manufacturer
Wago
GTIN
4055143825481
Condition
New
Quantity
Price
*Note:
Price:
$
652.60
Please Contact Us for Stock Availability
Qty
1
Add to cart
Order by 3PM MST (subject to stock availability) same day shipping available!
UPS charger and controller; 24 VDC input voltage; 24 VDC output voltage; 40 A output current
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
UPS charger and controller; 24 VDC input voltage; 24 VDC output voltage; 40 A output current
Features
DC UPS module for uninterruptible power supply (UPS)
Potential-free contacts provide function monitoring
Remote input for buffered output deactivation
Input for temperature control of connected battery
Battery internal resistance measurement for diagnosing batteries, including the connection cable and fuse
Approvals
CSA Group, CSA, 70216154, CAN/CSA-C22.2 No. 62368-1
ROSTEST-Moskau, EAC, RU_C-DE.AM02.B.00093-19, TP TC 020/2011
Specifications
Notes
Safety information 1: For North America: Use only batteries with appropriate safety approvals!
Input
Nominal input voltage Ui nom: DC 24 V
Input voltage range: DC 22 … 28 V
Nominal mains frequency range: 0 Hz
Input current Ii: ≤ 0.16 A (No load); ≤ 4 A (Charging); ≤ 44 A
Output
Nominal output voltage Uo nom: DC 24 V
Output voltage range: Ui (rated operation); 19.5 … 26.5 VDC (battery voltage in buffer mode)
Nominal output current Io nom: 40 A
Energy Storage System
Buffer time: Load-dependent
Switch-on threshold (adjustable): DC 21.5 … 22.5 V
Charging current: 1 … 4 A (adjustable in 1 A steps via DIP switch; Default setting: 2 A)
End-of-charge voltage: DC 26.4 … 29 V (temperature controlled with NTC; without temperature sensor: 27.2 VDC)
Recommended battery module: Typ: VRLA 24 V; 7 … 40 Ah
Signaling And Communication
Signaling: 1 x Power LED (green) || 1 x UPS LED (yellow) || 1 x Warning LED (red) || 2 x Isolated relay contact (max. 30 VDC; 1 A)
Operation status indicator: Green LED (operation) || Yellow LED (buffer mode/charging) || Red LED (warning)
Remote input: Switching buffer mode off
Efficiency/Power Losses
Power loss Pl: ≤ 4 W (No load); ≤ 22.5 W (Nominal load)
Efficiency (typ.): 97 % (Rated operation); 85 % (Charging)
Circuit Protection
Internal fuse: T 6.3 A (charging circuit)
Recommended backup fusing: T 50 A
Safety And Protection
Isolation voltage (connectors – housing): DC 0.5 kV
Protection class: III
Protection type: IP20 (per EN 60529)
Reverse voltage protection: Yes
Pollution degree: 2
Parallel operation: No
Series operation: No
MTBF: 600,000 h (40 °C; per SN 29500)
Connection Data
Connection type (1): Input/output
Connection technology: Push-in CAGE CLAMP®
WAGO Connector: WAGO 2636 Series
Solid conductor: 0.75 … 16 mm² / 18 … 4 AWG
Fine-stranded conductor: 0.75 … 25 mm² / 18 … 4 AWG
Fine-stranded conductor; with insulated ferrule: 0.75 … 16 mm²
Fine-stranded conductor; with uninsulated ferrule: 0.75 … 16 mm²
Strip length: 18 … 20 mm / 0.71 … 0.79 inch
Connection type 2: Signaling
Connection technology 2: CAGE CLAMP®
WAGO Connector 2: WAGO 741 Series
Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule 2: 0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule 2: 0.25 … 1.5 mm²
Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
Physical Data
Width: 68 mm / 2.677 inch
Height: 181 mm / 7.126 inch
Depth from upper edge of DIN-rail: 162 mm / 6.38 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Fire load: 0.000 MJ
Weight: 1100.000 g
Environmental Requirements
Surrounding air temperature (operation): 0 … 50 °C
Surrounding air temperature (storage): -20 … 55 °C
Relative humidity: 5 … 95 % (no condensation permissible)
Standards And Specifications
Conformity marking: CE
Standards/Specifications: EN 62368-1 || EN 61000-6-2 || EN 61000-6-3
Standards/Specifications (pending): CSA
Commercial Data
Packaging type: Box
Country of origin Sales Organisation Germany: DE
GTIN: 4055144035070
Customs tariff number Sales Organisation Germany: 85044082900
