SMPS COMPACT 1-ph
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend

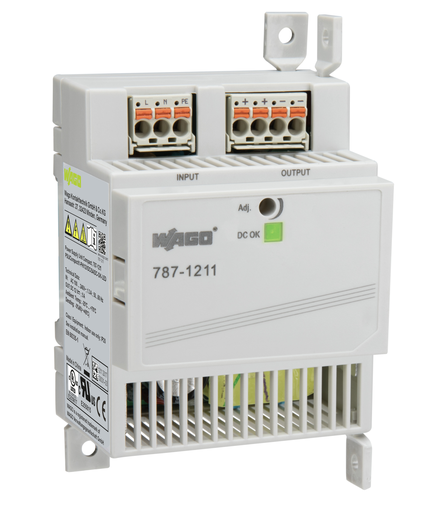

SMPS COMPACT 1-ph
Features
Switched-mode power supply
Stepped profile for installation in standard distribution boards
Removable front panel and screw mounts for alternative installation in distribution boxes or devices
Pluggable picoMAX® Connection Technology (tool-free)
Suitable for both parallel and series operation
Electrically isolated output voltage (SELV) per EN 60335-1 and UL 60950-1; PELV per EN 60204
Approvals
Underwriters Laboratories Inc., UR, E255815, UL 62368-1
Underwriters Laboratories Inc., UL, E255817, UL 508
Specifications
Input
Phases: 1
Nominal input voltage Ui nom: 1 x AC 100 … 240 V; DC 140 … 340 V
Input voltage range: AC 85 … 264 V; DC 125 … 375 V
Input voltage derating: -2 %/V (< 100 VAC); -1.33 %/V (< 140 VDC)
Nominal mains frequency range: 47 … 63 Hz; 0 Hz
Input current Ii: ≤ 0.6 A
Discharge current: ≤ 0.25 mA
Inrush current: ≤ 30 A (NTC)
Power factor: ≥ 0.5
Power factor correction (PFC): Passive
Mains failure hold-up time: ≥ 600 ms (230 VAC); ≥ 12 ms (110 VAC)
Output
Nominal output voltage Uo nom: DC 12 V (SELV)
Output voltage range: DC 10 … 14 V (adjustable)
Default setting: DC 12 V
Nominal output current Io nom: 5 A
Nominal output power: 60 W
Control deviation: ≤ 1 %
Deviation, dynamic load change 10 … 90 %: ≤ 1 %
Residual ripple: ≤ 100 mV (Peak-to-peak)
Overload behavior: Constant power (in overload range: 1.22 … 1.7 x Io nom); Hiccup in the event of a short circuit or permanent overload
Signaling And Communication
Signaling: 1 x LED DC OK (green)
Operation status indicator: Green LED (Uo)
Efficiency/Power Losses
Power loss Pl: ≤ 0.6 W (230 VAC; No load)
Power loss (max.) Pl (max.): 9 W (100 VAC / 12 VDC; 2.5 A)
Efficiency (typ.): 88.5 % (230 VAC; Nominal load); 87.5 % (110 VAC; Nominal load)
Circuit Protection
Internal fuse: T 3.15 A / 250 VAC
Required backup fusing: An external DC fuse is required for the DC input voltage.
Recommended backup fusing: Circuit breaker: 6 A, 10 A or higher; Tripping characteristic: B
Safety And Protection
Isolation voltage (Pri.-Sec.): DC 4.242 kV
Isolation voltage (Pri.-GND): DC 2.12 kV
Protection class: I
Protection type: IP20 (per EN 60529)
Reverse voltage protection: Yes
Resistance to reverse feed: ≤ DC 16 V
Overvoltage category: II
Pollution degree: 2
Transient suppression (primary): Varistor
Overvoltage protection; secondary: ≤ 20 VDC (in the event of a fault)
Short-circuit-protected: Yes
Open-circuit-proof: Yes
Parallel operation: Yes, for devices of the same type
Series operation: Yes, for 2 devices of the same type
MTBF: > 500,000 h (per IEC 61709)
Connection Data
Connection type (1): Input/output
Connection technology: Push-in CAGE CLAMP®
WAGO Connector: picoMAX® 5.0, WAGO 2092 Series
Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
Strip length: 9 … 10 mm / 0.35 … 0.39 inch
Physical Data
Width: 72 mm / 2.835 inch
Height: 90 mm / 3.543 inch
Depth: 56 mm / 2.205 inch
Depth from upper edge of DIN-rail: 52.5 mm / 2.067 inch
Note (dimensions): Depth: 48 mm (without cover)
Mechanical Data
Mounting type: DIN-35 rail || Screw mount (back/side)
Material Data
Flammability class per UL94: V0
Fire load: 0.000 MJ
Weight: 63.000 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C
Surrounding air temperature (storage): -40 … 85 °C
Relative humidity: 20 … 90 % (no condensation permissible)
Derating: −3 %/K (> +45 °C and Ue = 90 VAC); −2.3 %/K (> +50 °C and Ue = 230 VAC)
Standards And Specifications
Conformity marking: CE
Standards/Specifications: EN 61204-3 || EN 60335-1 || EN 62368-1 || UL 60950-1 || UL 508
Commercial Data
Packaging type: Box
Country of origin Sales Organisation Germany: CN
GTIN: 4055143804226
Customs tariff number Sales Organisation Germany: 85044082900
