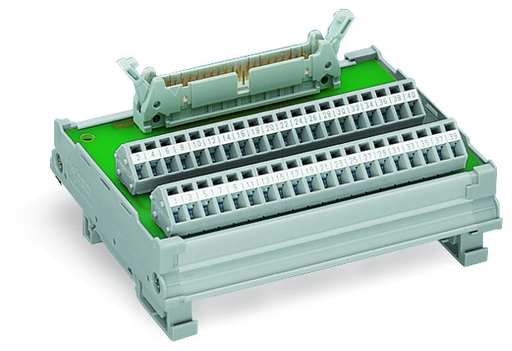

WAGO 289-503

289-503 WAGO 289-503

WAGO 289-503
Part # 289-503
Manufacturer Wago
GTIN 4045454353476
Condition New
Price: $ 57.62

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
IM DIN 41651
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
IM DIN 41651

Specifications

Electrical Data

  • Operating voltage: ≤100 VAC; ≤125 VDC
  • Nominal current: 1 A

Safety And Protection

  • Rated voltage: 100 V
  • Rated surge voltage: 0.8 kV
  • Pollution degree: 2
  • Protection type: IP20

Connection Data

  • Pole No.: 16
  • Connection type (1): System
  • Pluggable connectors: DIN 41651 male connector
  • Mating direction: Vertical
  • Connection type 2: Field
  • Pole number 2: 16
  • Design 2: PCB terminal blocks (double-row)
  • Connection technology 2: CAGE CLAMP®
  • WAGO Connector 2: WAGO 236 Series
  • Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
  • Note (conductor cross-section): 12 AWG: THHN, THWN
  • Performance level: 3 / 50 mating cycles

Physical Data

  • Width: 46 mm / 1.811 inch
  • Height: 85 mm / 3.346 inch
  • Depth from upper edge of DIN-rail: 36 mm / 1.417 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Housing design: Mounting carrier

Material Data

  • Contact material (connector): Au over Ni
  • Fire load: 0.692 MJ
  • Weight: 55.765 g

Environmental Requirements

  • Surrounding air temperature (operation): -20 … 55 °C
  • Surrounding air temperature (storage): -40 … 70 °C
  • Relative humidity: ≤ 85% (non-condensing)

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454353476
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
