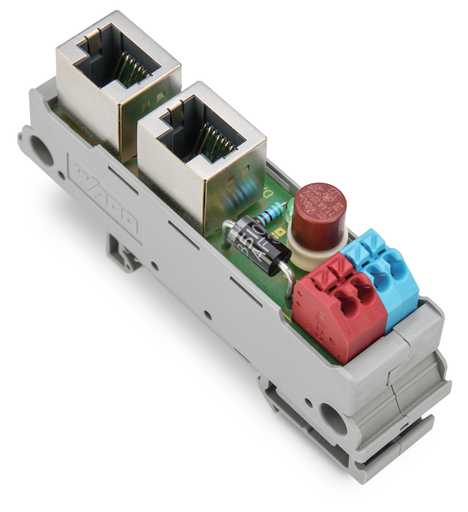

WAGO 289-196
WAGO 289-196
289-196 WAGO 289-196
OutOfStock
OutOfStock
Part #
289-196
Manufacturer
Wago
GTIN
4055143572637
Condition
New
Quantity
Price
*Note:
Price:
$
115.10
Please Contact Us for Stock Availability
Qty
1
Add to cart
Order by 3PM MST (subject to stock availability) same day shipping available!
IM RJ-45 POW-CON
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
IM RJ-45 POW-CON
Features
Interface module with RJ-45 connector for ETHERNET
Passive PoE-injector
For up to 100 Mbit/s, Cat. 5
Cabinet wiring with preassembled RJ-45-patch cabels
Specifications
Electrical Data
Operating voltage: ≤48 VDC
Nominal current: 1.5 A
Insulation resistance: ≥ 500 MΩ
Specialty functions: Passive PoE injector || With LED, fuse
Safety And Protection
Dielectric strength, contact/contact (AC, 1 min): 1 kVrms
Connection Data
Pole No.: 8
Connection type (1): System
Pluggable connectors: RJ-45 (shielded)
Connection type 2: System
Pole number 2: 8
Connector 2: RJ-45 (shielded)
Connection type (3): Power supply
Pole number 3: 4
Connection technology 3: Push-in CAGE CLAMP®
WAGO Connector 3: WAGO 250 Series
Solid conductor 3: 0.2 … 1.5 mm² / 24 … 16 AWG
Fine-stranded conductor (3): 0.2 … 1.5 mm² / 24 … 16 AWG
Strip length 3: 8.5 … 9.5 mm / 0.33 … 0.37 inch
Mating cycles: 500
Transmission length (max.): 100 m
Connection cable: Cat. 5 (min.)
Physical Data
Width: 20.5 mm / 0.807 inch
Height: 85 mm / 3.346 inch
Depth from upper edge of DIN-rail: 51 mm / 2.007 inch
Mechanical Data
Mounting type: DIN-35 rail
Housing design: Mounting carrier
Material Data
Fire load: 0.492 MJ
Weight: 32.000 g
Environmental Requirements
Surrounding air temperature (operation): 0 … 70 °C
Surrounding air temperature (storage): -40 … 85 °C
Relative humidity: ≤ 85% (non-condensing)
Commercial Data
Packaging type: Box
Country of origin Sales Organisation Germany: DE
GTIN: 4055143572637
Customs tariff number Sales Organisation Germany: 85366990990
