WAGO 289-101

289-101 WAGO 289-101

WAGO 289-101
Part # 289-101
Manufacturer Wago
GTIN 4045454192747
Condition New
Price: $ 31.89

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

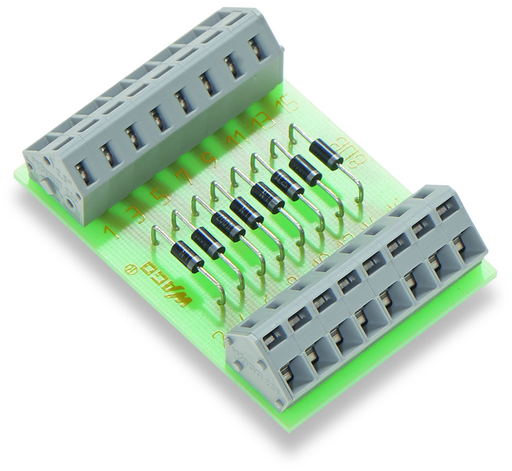

CM-D 8x 1N4007
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
CM-D 8x 1N4007

Specifications

Notes

  • Note: Max. admissible current per the manufacter’s data sheet. With all diodes loaded, the continuous current must be reduced.

Electrical Data

  • Operating voltage: ≤ AC/DC 250 V
  • Peak reverse voltage: 1000 V
  • Rectified current for each diode (resistive): 1 A
  • Forward voltage per diode: 1.1 V
  • Forward current per diode (resistive): 1 A
  • Leakage current: 50 µA

Safety And Protection

  • Rated voltage: 250 V
  • Rated surge voltage: 4 kV
  • Pollution degree: 2
  • Protection type: IP00*
  • Note on protection type: Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application.

Connection Data

  • Connection technology: CAGE CLAMP®
  • WAGO Connector: WAGO 236 Series
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

  • Width: 47 mm / 1.85 inch
  • Height from the surface: 31.5 mm / 1.24 inch
  • Height from upper-edge of DIN-rail: 82.5 mm / 3.25 inch
  • Depth: 65.5 mm / 2.579 inch

Mechanical Data

  • Mounting type: Mounting on DIN-rail via DIN-rail adapter
  • Housing design: PCB

Material Data

  • Fire load: 0.898 MJ
  • Weight: 24.900 g

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 40 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454192747
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
