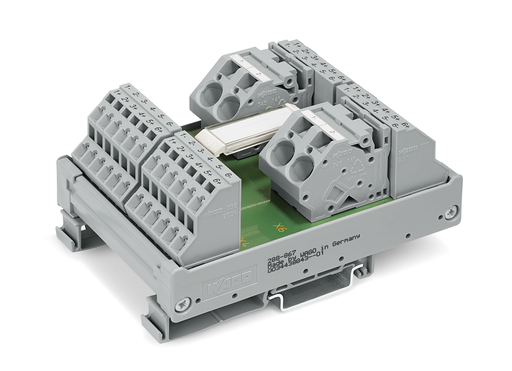

Features

• May be used with electronic circuit breakers for 24 and 0 VDC power distribution, as a substitute for rail-mount terminal blocks
• Four potential groups for four output circuits
• Six connection points per potential group for positive and negative potentials
• On-unit commoned negative potential with optional commoning to adjacent modules via comb-style jumper bar (745-682)
• Marker carrier is available

Approvals

• Underwriters Laboratories Inc., UL, E175199

Specifications

Electrical Data

• Nominal operating voltage: DC 24 V
• Current per connection (max.): 10 A
• Total current per potential (max.): 10 A
• Total current 0 V (max.): 40 A

Safety And Protection

• Rated voltage: 50 V
• Rated surge voltage: 0.8 kV
• Pollution degree: 2

Connection Data

• Total number of potentials: 4
• Connection type (1): Connection points
• Mating direction: 45°
• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 736 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Connection type 2: Negative potential
• Mating direction (2): Vertical
• Connection technology 2: CAGE CLAMP®
• WAGO Connector 2: WAGO 745 Series
• Solid conductor 2: 0.2 … 16 mm² / 24 … 6 AWG
• Fine-stranded conductor 2: 0.2 … 16 mm² / 24 … 6 AWG
• Strip length 2: 12 … 13 mm / 0.47 … 0.51 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 70 mm / 2.756 inch
• Height: 105 mm / 4.134 inch
• Depth from upper edge of DIN-rail: 50 mm / 1.969 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Housing design: Mounting carrier

Material Data

• Fire load: 1.084 MJ
• Weight: 136.158 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821889687
• Customs tariff number Sales Organisation Germany: 85369010000
