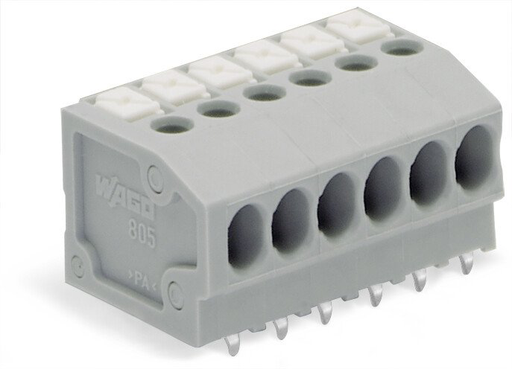

WAGO 805-162

805-162 WAGO 805-162

WAGO 805-162
Part # 805-162
Manufacturer Wago
GTIN 4055143388375
Condition New
Price: $ 5.36

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
PCB terminal block; push-button; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; Push-in CAGE CLAMP®; 1,50 mm²; gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal block; push-button; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; Push-in CAGE CLAMP®; 1,50 mm²; gray

Features

  • PCB terminal strips with push-buttons and Push-in CAGE CLAMP® connection
  • Push-in termination of solid and ferruled conductors
  • Flush-mount push-buttons that close with minimal force for convenient termination/removal of fine-stranded conductors
  • Convenient, tool-free operation
  • Versions with/without test slots and spacers
  • Versions available with custom internal commoning (factory assembly), e.g., commoning ground conductor

Approvals

  • Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 160 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 17.5 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group C): 150 V
  • Rated current UL (Use Group C): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-button
  • Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
  • Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1 mm²
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 12

Physical Data

  • Pin spacing: 3.5 mm / 0.138 inch
  • Width: 43.5 mm / 1.713 inch
  • Height: 13.7 mm / 0.539 inch
  • Height from the surface: 10.5 mm / 0.413 inch
  • Depth: 13.6 mm / 0.535 inch
  • Solder pin length: 3.2 mm
  • Solder pin dimensions: 0.5 x 0.75 mm
  • Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 1

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.100 MJ
  • Weight: 5.454 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4055143388375
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
