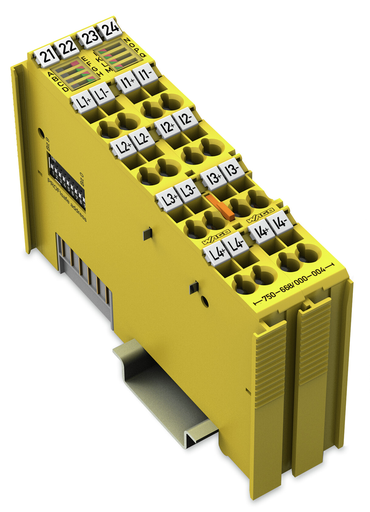

Features

Approvals

• TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079
• CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• TUEV Rheinland Industrie Service GmbH, TUEV Rheinland, No. 968/EZ 247.14/16
• TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079

Specifications

Technical Data

• Number of analog inputs: 4
• Total number of channels (module): 4
• Signal type: Current
• Signal type (current): 0 … 20 mA; 4 … 20 mA
• Sensor supply: Outputs L1 … L4
• Sensor connection: 4 x (2-wire, 3-wire, 4-wire)
• Output current per channel: 1.5 A
• Output current (module): 1.5 A
• Signal characteristic: Differential
• Resolution [bit]: 16 bits
• Common mode voltage (max): 60 V
• Noise rejection at sampling frequency: 38 dB
• Load impedance: 300 Ω
• Measurement error (reference temperature): 25 °C
• Measurement error – deviation (max.) from the upper-range value: 0.05 %
• Temperature error (max.) of the upper-range value: 0.0065 %/K
• Configuration options: PROFIsafe address adjustable via DIP switch or engineering software
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 120 mA
• Supply voltage (field): 24 VDC, SELV/PELV (-15 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Power consumption, field supply (module with no external load): 40 mA
• Isolation: 500 V system/field
• Indicators: LED (E) red, LED (F-H) red/green: Diagnostics; LED (I-M) red/green: Input/output status
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 10 A
• Current carrying capacity (module): 40 mA

Functional Safety

• Achievable safety classes: SIL 3; Category 4, PLe (two-channel); SIL 2; Category 2; PLd (one-channel)
• Safety standards: IEC 61508-1 … -7; EN ISO 13849-1; EN 62061

Connection Data

• Connection technology: inputs/outputs: 16 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 24 mm / 0.945 inch
• Height: 100 mm / 3.937 inch
• Depth: 67.8 mm / 2.669 inch
• Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Yellow
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 1.292 MJ
• Weight: 103.430 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications, EN 61000-6-7 (FS)
• EMC emission of interference: Per EN 61000-6-4, marine applications, EN 61000-6-3
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143899826
• Customs tariff number Sales Organisation Germany: 85389099990
