WAGO 744-306

744-306 WAGO 744-306

WAGO 744-306
Part # 744-306
Manufacturer Wago
GTIN 4055143300544
Condition New
Price: $ 1.08

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

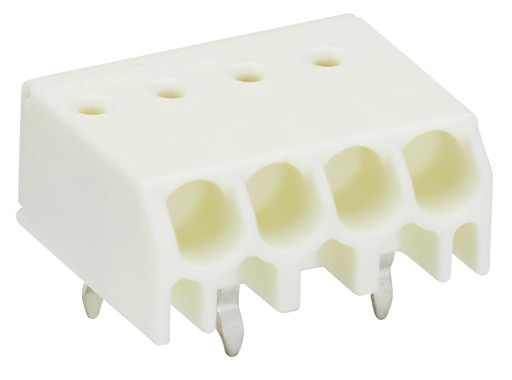

PCB terminal block; 1.5 mm²; Pin spacing 3.5 mm; 6-pole; PUSH WIRE®; 1,50 mm²; white
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal block; 1.5 mm²; Pin spacing 3.5 mm; 6-pole; PUSH WIRE®; 1,50 mm²; white

Features

  • PCB terminal blocks with PUSH WIRE® connection
  • Push-in termination of solid conductors – low insertion forces
  • Just 6.6 mm tall
  • Conductor removal via disconnection tool or by twist & pull

Approvals

  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • DEKRA Certification B.V., AOC, 2226904.01-AOC, EN 60998

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 3 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 6 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 6 A

Connection 1

  • Connection technology: PUSH WIRE®
  • Actuation type: Operating tool
  • Solid conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 6

Physical Data

  • Pin spacing: 3.5 mm / 0.138 inch
  • Width: 21.9 mm / 0.862 inch
  • Height: 10.1 mm / 0.398 inch
  • Height from the surface: 6.6 mm / 0.26 inch
  • Depth: 12.5 mm / 0.492 inch
  • Solder pin length: 3.5 mm
  • Solder pin dimensions: 0.35 x 0.9 mm
  • Drilled hole diameter with tolerance: 1.1 (-0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (staggered)
  • Number of solder pins per potential: 1

Material Data

  • Color: White
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Copper alloy
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 1.658 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4055143300544
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
