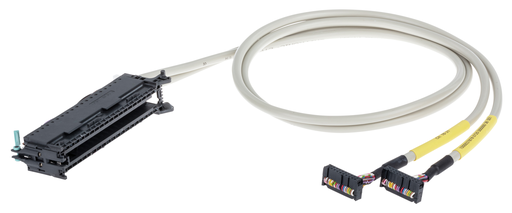

Specifications

Notes

• Note: If less than 3 channels used at the same time, the maximum current per wire 2 A and up to 5 A (amb. T 30 °C) or 3.5 A (amb. T 50 °C) on the power supply pins N/L. If more than 3 channels used at the same time, the maximum current per wire 0.75 A and up to 5 A (amb. T 30 °C) or 3.5 A (amb. T 50 °C) on the power supply pins N/L.

Electrical Data

• Inputs/outputs: 8 digital outputs; for higher voltages
• Operating voltage: ≤ AC/DC 250 V
• Current per wire (max.): 0.75 A

Connection Data

• Compatible PLC Modules: Siemens S7-1500
• Compatible PLC I/O Card Types: 6ES7 522-5FF00-0AB0 || 6ES7 522-5HF00-0AB0
• Connection type (1): System
• Pole number 1: 10
• Pluggable connectors: WAGO 231 Series
• Connection type 2: System
• Pole number 2: 10
• Connector 2: WAGO 231 Series
• Connection type (3): System
• Pole number 3: 40
• Connector 3: Siemens 6ES7-592-1BM00-0XB0
• Cable type: LiYY
• Wire cross-section: 0.34 mm²
• Color code: Per DIN VDE 47100

Physical Data

• Cable length: 2 m

Material Data

• Fire load: 0.000 MJ
• Weight: 514.000 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 50 °C

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: FR
• GTIN: 4055143658225
• Customs tariff number Sales Organisation Germany: 85444290900
