WAGO 400-465/465-575
400-465/465-575 WAGO 400-465/465-575
OutOfStock

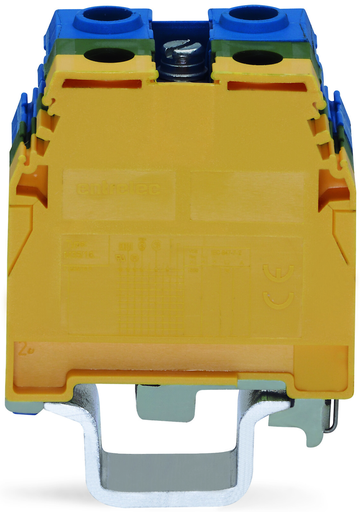

4-conductor ground terminal block; 35 mm²; with contact to DIN rail; only for DIN 35 x 15 rail; copper; SCREW CLAMP CONNECTION; 35,00 mm²; green-yellow/blue
Got questions?
Send us a message
or call us at 1-800-335-5111 for additional assistance.
4-conductor ground terminal block; 35 mm²; with contact to DIN rail; only for DIN 35 x 15 rail; copper; SCREW CLAMP CONNECTION; 35,00 mm²; green-yellow/blue
Specifications
Notes
- Safety information 1: Only suitable for DIN 35 x 15 rail
Connection 1
- Connection technology: Screw-type connection
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 16 … 35 mm² / 6 … 2 AWG
- Strip length: 17 … 19 mm / 0.67 … 0.75 inch
- Wiring direction: Side-entry wiring
Physical Data
- Width: 32 mm / 1.26 inch
- Height: 49 mm / 1.929 inch
- Depth from upper edge of DIN-rail: 46.5 mm / 1.831 inch
Mechanical Data
- Design: Horizontal type
- Mounting type: DIN-35 rail
- Marking level: Side marking
Material Data
- Color: Green-yellow/blue
- Fire load: 0.000 MJ
- Weight: 118.260 g
Commercial Data
- Packaging type: Box
- Country of origin Sales Organisation Germany: FR
- GTIN: 4017332280495
- Customs tariff number Sales Organisation Germany: 85369010000
