Features

• Measure both machine code’s runtime behavior and code coverage right at the beginning of the development phase
• Detect runtime problems at an early stage
• Identify both time-consuming program parts and unused programming blocks
• Overall and individual measurement of all application blocks
• Identify the code efficiency by comparing historical and current measurements
• Increase the software quality
• Implicit binary code extension during translation, without changing the program code of a project
• Dynamic measurement via code instrumentation at each function entry and exit
• Only during measurement: temporary code enlargement and runtime extension of 10 to 50%
• Measurement start via variable or command

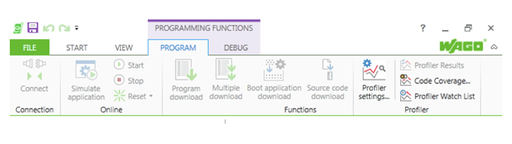

• Overview of the measurement results in the development environment
• Control the runtime measurement via freely selectable Boolean variable
• Measure the runtime of individual programming blocks and function block instances within the “profiler watch list”
• Measure the percentage of missed instructions per block via code coverage
• Measurement results show the time-critical path
• Select the task to be measured
• Select the unit base (tick, milliseconds or microseconds)
• Define the memory size required for the measurement
• Adjust the measurement behavior (next or maximum cycle)
• Select the calls to be measured in the monitoring list
• Select the program blocks to be measured to determine the code coverage
• Percentage of time spent in the call
• Total time spent in call
• Average time of all POU calls in a single cycle
• Minimum and maximum processing time over multiple cycles
• Number of calls
• Time spent for each call
• Standard deviation of average measured time
• Percentage of the iterated code
• Summary table
• Call tree (time- or process-oriented)
• Tables
• Watch list

Specifications

System Requirements

• Hard disk space: Min. 30 MByte
• Other required software: e!COCKPIT version: V1.4.0

Delivery

• License type: Single-user license
• Delivery type: Installation file (download)
• License type (note): Single license allows installation on one computer.
• Note on license type (2): Internet connection may be required for license activation.

Commercial Data

• Country of origin Sales Organisation Germany: QU
• GTIN: 4055143708296
• Customs tariff number Sales Organisation Germany: 88888888888
