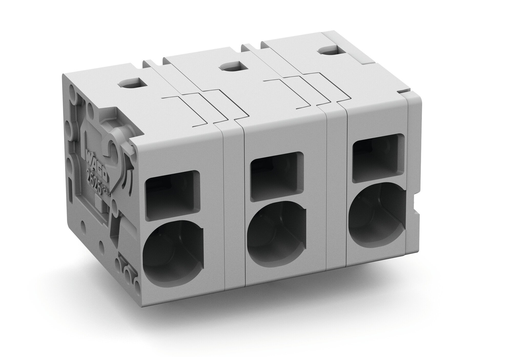

WAGO 2626-1359

2626-1359 WAGO 2626-1359

WAGO 2626-1359
Part # 2626-1359
Manufacturer Wago
GTIN 4055143861700
Condition New
Price: $ 15.74

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
PCB terminal block; 6 mm²; Pin spacing 12.5 mm; 9-pole; Push-in CAGE CLAMP®; 6,00 mm²; gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal block; 6 mm²; Pin spacing 12.5 mm; 9-pole; Push-in CAGE CLAMP®; 6,00 mm²; gray

Features

  • PCB terminal strips with Push-in CAGE CLAMP® connection
  • Push-in termination of solid and ferruled conductors
  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Testing can be performed both parallel and perpendicular to conductor entry

Approvals

  • DEKRA Certification B.V., CB, NL-64739, IEC 60947-7-4
  • DEKRA Certification B.V., KEMA/KEUR, 71-113203, EN 60947-7-4
  • DEKRA Certification B.V., CSA, 70146882, C22.2

Specifications

Notes

  • Variants:: Other pole numbers || Direct marking || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 1000 V
  • Rated surge voltage (III/3): 8 kV
  • Rated voltage (III/2): 1000 V
  • Rated surge voltage (III/2): 8 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 8 kV
  • Rated current: 48 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 38 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 38 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 600 V
  • Rated current CSA (Use Group B): 38 A
  • Rated voltage CSA (Use Group C): 600 V
  • Rated current CSA (Use Group C): 38 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
  • Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 6 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 6 mm²
  • Fine-stranded conductor; with twin ferrule: 0.25 … 2.5 mm²
  • Strip length: 13 … 15 mm / 0.51 … 0.59 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 9

Physical Data

  • Pin spacing: 12.5 mm / 0.492 inch
  • Width: 109.3 mm / 4.303 inch
  • Height: 23.6 mm / 0.929 inch
  • Height from the surface: 19.6 mm / 0.772 inch
  • Depth: 24.2 mm / 0.953 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 1.5 x 1 mm
  • Drilled hole diameter with tolerance: 2 (+0.1) mm

Mechanical Data

  • Mounting type: Feed-through mounting

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 48.350 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4055143861700
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
