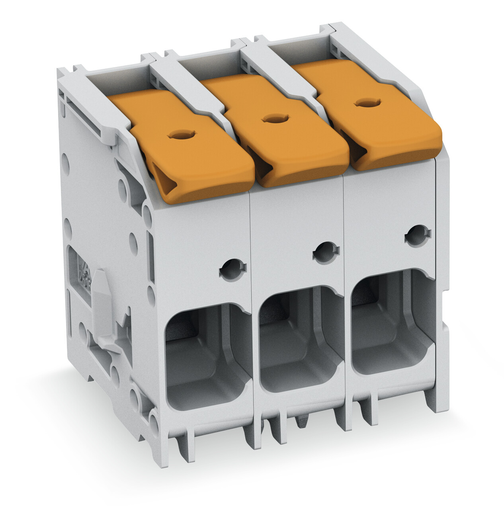

WAGO 2616-1106/010-000

2616-1106/010-000 WAGO 2616-1106/010-000

WAGO 2616-1106/010-000
Part # 2616-1106/010-000
Manufacturer Wago
GTIN 4055143953153
Condition New
Price: $ 17.67

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
PCB terminal block lever 16 mm² Pin spacing 10 mm 6-pole, gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal block lever 16 mm² Pin spacing 10 mm 6-pole, gray

Features

  • PCB terminal blocks with levers and Push-in CAGE CLAMP® connection
  • Push-in termination of solid and ferruled conductors
  • Intuitive and tool-free operation
  • Several clamping units can be held open simultaneously – convenient for terminating multi-core cables
  • Testing can be performed both parallel and perpendicular to conductor entry

Specifications

Notes

  • Variants:: Other pole numbers || Direct marking || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 1000 V
  • Rated surge voltage (III/3): 8 kV
  • Rated voltage (III/2): 1000 V
  • Rated surge voltage (III/2): 8 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 8 kV
  • Rated current: 76 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 66 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 66 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 600 V
  • Rated current CSA (Use Group B): 66 A
  • Rated voltage CSA (Use Group C): 600 V
  • Rated current CSA (Use Group C): 66 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Lever
  • Solid conductor: 0.75 … 16 mm² / 18 … 4 AWG
  • Fine-stranded conductor: 0.75 … 25 mm² / 18 … 4 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.75 … 16 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.75 … 16 mm²
  • Fine-stranded conductor; with twin ferrule: 0.75 … 6 mm²
  • Strip length: 18 … 20 mm / 0.71 … 0.79 inch
  • Conductor connection direction to PCB: 0 °

Physical Data

  • Pin spacing: 10 mm / 0.394 inch
  • Width: 62.8 mm / 2.472 inch
  • Height: 37.2 mm / 1.465 inch
  • Height from the surface: 33.2 mm / 1.307 inch
  • Depth: 32 mm / 1.26 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 1.2 x 1.2 mm
  • Drilled hole diameter with tolerance: 1.7 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (staggered)
  • Number of solder pins per potential: 3

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.570 MJ
  • Color of actuator: Orange
  • Weight: 55.959 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143953153
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
