WAGO 261-346/332-000

261-346/332-000 WAGO 261-346/332-000

WAGO 261-346/332-000
Part # 261-346/332-000
Manufacturer Wago
GTIN 4044918615198
Condition New
Price: $ 1.48

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

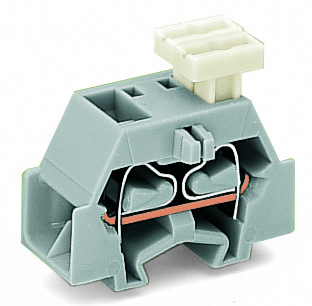

4-conductor terminal block; on one side with push-button; with snap-in mounting foot; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; orange
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
4-conductor terminal block; on one side with push-button; with snap-in mounting foot; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; orange

Features

Approvals

  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • Lloyds Register, LR, 91/20242 (E7), IEC 60998
  • DEKRA Certification B.V., CCA, 2110272.02, EN 60998
  • DEKRA Certification B.V., CCA, NTR-NL 6509, EN 60998
  • American Bureau of Shipping, ABS, 19-HG1869868-PDA

Specifications

Ratings Per Iec/En

  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 24 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool || Push-button, one side
  • Connectable conductor materials: Copper
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Pole No.: 1
  • Wiring direction: Side-entry wiring

Physical Data

  • Width: 10 mm / 0.394 inch
  • Height from the surface: 23.3 mm / 0.917 inch
  • Depth: 28.1 mm / 1.106 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: Snap-in foot
  • Marking level: Side marking

Material Data

  • Color: Orange
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.072 MJ
  • Weight: 4.140 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918615198
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
