WAGO 236-604/000-009/999-950

236-604/000-009/999-950 WAGO 236-604/000-009/999-950

WAGO 236-604/000-009/999-950
Part # 236-604/000-009/999-950
Manufacturer Wago
GTIN 4044918773256
Condition New
Price: $ 3.87

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

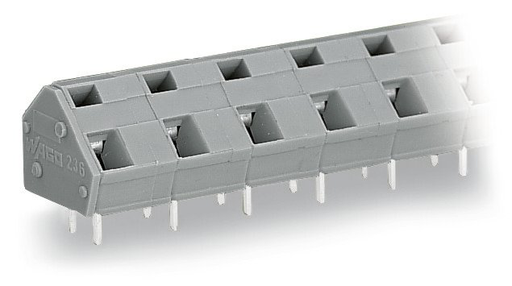

PCB terminal block; 2.5 mm²; Pin spacing 10/10.16 mm; 4-pole; suitable for Ex-e applications; CAGE CLAMP®; commoning option; 2,50 mm²; light gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal block; 2.5 mm²; Pin spacing 10/10.16 mm; 4-pole; suitable for Ex-e applications; CAGE CLAMP®; commoning option; 2,50 mm²; light gray

Features

  • PCB terminal strips with CAGE CLAMP® connection, screwdriver actuation parallel or perpendicular to conductor entry
  • Operating tools for factory wiring
  • 45° conductor entry angle permits a wide range of applications and wiring options
  • Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart

Approvals

  • DEKRA Certification B.V., CSA, 1673957, C22.2 No. 158
  • Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 06.0042U Ex eb IIC GB or Ex eb I Mb, IEC 60079
  • Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
  • Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 06 Atex 1061 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079

Specifications

Notes

  • Variants:: Other pole numbers || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ex Information

  • Ratings per: ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
  • Rated voltage EN (Ex e II): 440 V
  • Rated current (Ex e II): 16 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
  • Note (conductor cross-section): 12 AWG: THHN, THWN
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Conductor connection direction to PCB: 45 °
  • Pole No.: 4

Physical Data

  • Pin spacing: 10/10.16 mm / 0.394/0.4 inch
  • Width: 42.3 mm / 1.665 inch
  • Height: 17 mm / 0.669 inch
  • Height from the surface: 13 mm / 0.512 inch
  • Depth: 14 mm / 0.551 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 0.7 x 0.7 mm
  • Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.100 MJ
  • Weight: 5.242 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4044918773256
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
