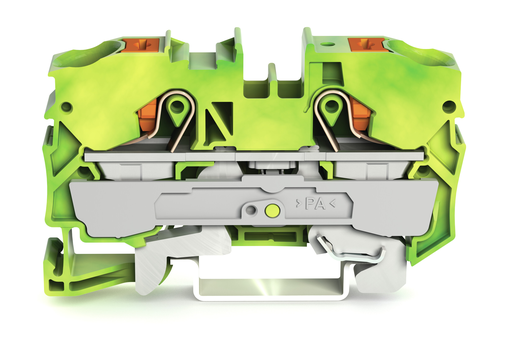

WAGO 2210-1207

2210-1207 WAGO 2210-1207

WAGO 2210-1207
Part # 2210-1207
Manufacturer Wago
GTIN 4055143736084
Condition New
Price: $ 7.80

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2-conductor ground terminal block; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; green-yellow
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-conductor ground terminal block; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; green-yellow

Features

Approvals

  • Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
  • DEKRA Certification B.V., CSA, 70175033, C22.2
  • DEKRA Certification B.V., KEMA/KEUR, 71-119265, EN 60947
  • American Bureau of Shipping, ABS, 19-HG1866350-PDA
  • Physikalisch Technische Bundesanstalt, ATEX, PTB 18 ATEX 1008 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, IEC 60079-0
  • UL International Demko A/S, ATEX, E185892, UL 60079
  • Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 18.0015U Ex eb IIC Gb and Ex eb I Mb, IEC 60079
  • Lloyds Register, LR, 19/20050
  • DEKRA Certification B.V., CCA, NTR NL 7879, EN 60947
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • CQST/CNEx, CCCEx, 2020312313000173, CNCA-C23-01
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00003JT

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-2

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Push-button || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 10 mm²
  • Solid conductor: 0.5 … 16 mm² / 20 … 6 AWG
  • Solid conductor; push-in termination: 2.5 … 16 mm² / 14 … 6 AWG
  • Fine-stranded conductor: 0.5 … 16 mm² / 20 … 6 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 10 mm² / 20 … 8 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 4 … 10 mm² / 12 … 8 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 17 … 19 mm / 0.67 … 0.75 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 10 mm / 0.394 inch
  • Height: 67.6 mm / 2.661 inch
  • Depth from upper edge of DIN-rail: 36.9 mm / 1.453 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Green-yellow
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.346 MJ
  • Weight: 30.890 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143736084
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
