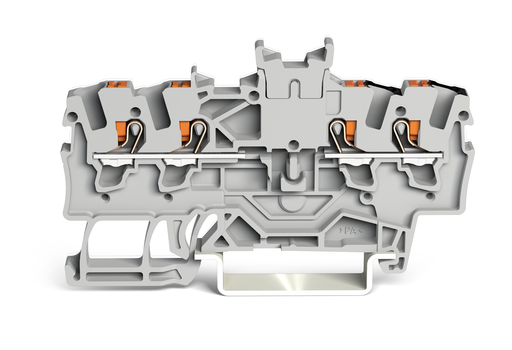

Features

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 71-113099, EN 60947
• DEKRA Certification B.V., CCA, NTR NL 7825, EN 60947
• DEKRA Certification B.V., CSA, 70173738, C22.2

Specifications

Notes

• Safety information 1: Notice: This double-potential terminal block cannot be commoned with push-in type jumper bars!

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 18 A
• Rated current 2: 24 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Number of connection points: 2
• Actuation type: Push-in || Push-button || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 1.5 mm²
• Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Solid conductor; push-in termination: 0.75 … 2.5 mm² / 18 … 14 AWG
• Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 1.5 mm² / 16 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.75 mm² / 18 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 9 … 11 mm / 0.35 … 0.43 inch
• Wiring direction: Front-entry wiring

Connection 2

• Number of connection points 2: 2

Physical Data

• Width: 4.2 mm / 0.165 inch
• Height: 69.9 mm / 2.752 inch
• Depth from upper edge of DIN-rail: 37.4 mm / 1.472 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.133 MJ
• Weight: 6.226 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143876902
• Customs tariff number Sales Organisation Germany: 85369010000
