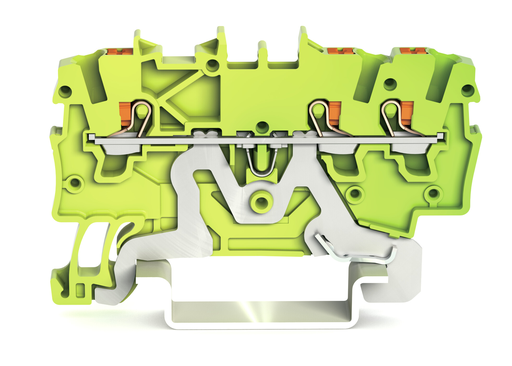

Features

Approvals

• Underwriters Laboratories Inc., cURus, E45172, UL 1059
• DEKRA Certification B.V., CSA, 70173737, C22.2
• American Bureau of Shipping, ABS, 19-HG1866350-PDA
• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00003JT
• DEKRA Certification B.V., KEMA/KEUR, 71-102874, EN 60947
• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 18.0010U Ex eb IIC Gb and Ex eb I Mb, IEC 60079
• CQST/CNEx, CCCEx, 202031231000166, CNCA-C23-01
• DEKRA Certification B.V., CCA, NTR NL 7663, EN 60947
• Physikalisch Technische Bundesanstalt, ATEX, PTB 18 ATEX 1003 UII 2 G Ex eb II C Gb bzw. I M 2 Ex eb I Mb, IEC 60079-0
• Underwriters Laboratories Inc., AEx, E185892, UL 60079
• Lloyds Register, LR, 19/20050

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-2

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Push-button || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 1 mm²
• Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 9 … 11 mm / 0.35 … 0.43 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 3.5 mm / 0.138 inch
• Height: 58.2 mm / 2.291 inch
• Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Green-yellow
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.000 MJ
• Weight: 5.146 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143692007
• Customs tariff number Sales Organisation Germany: 85369010000
