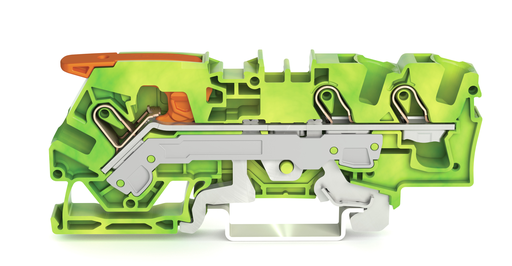

Features

Approvals

• Lloyds Register, LR, 19/20050
• Physikalisch Technische Bundesanstalt, ATEX, PTB 18 ATEX 1011 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079-0
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• American Bureau of Shipping, ABS, 19-HG1866350-PDA
• DEKRA Certification B.V., CCA, NTR NL 7678, EN 60947
• DEKRA Certification B.V., CSA, 70175103, C22.2
• DEKRA Certification B.V., KEMA/KEUR, 71-103226, EN 60947
• UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
• CQST/CNEx, CCCEx, 2020312313000164, CNCA-C23-01
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00003JT
• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 18.0018UEx eb IIC Gb resp. Ex eb I Mb, IEC 60079-0

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-2

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Lever
• Connectable conductor materials: Copper
• Nominal cross-section: 6 mm²
• Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Solid conductor; push-in termination: 1 … 10 mm² / 14 … 8 AWG
• Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 13 … 15 mm / 0.51 … 0.59 inch
• Wiring direction: Front-entry wiring

Connection 2

• Actuation type 2: Push-in || Operating tool

Physical Data

• Width: 7.5 mm / 0.295 inch
• Height: 91.2 mm / 3.591 inch
• Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Green-yellow
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.271 MJ
• Weight: 24.950 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143742221
• Customs tariff number Sales Organisation Germany: 85369010000
