WAGO 2092-1358/000-5000

2092-1358/000-5000 WAGO 2092-1358/000-5000

WAGO 2092-1358/000-5000
Part # 2092-1358/000-5000
Manufacturer Wago
GTIN 4050821354499
Condition New
Price: $ 6.17

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

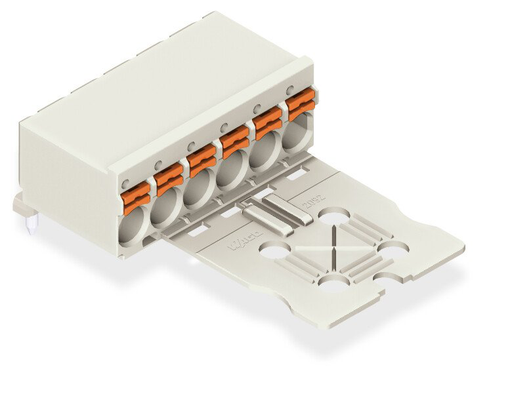

1-conductor THT female header; 1.4 mm Ø solder pin; angled; Gripping plate; direct marking; 2.5 mm²; Pin spacing 5 mm; 8-pole; 2,50 mm²; light gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
1-conductor THT female header; 1.4 mm Ø solder pin; angled; Gripping plate; direct marking; 2.5 mm²; Pin spacing 5 mm; 8-pole; 2,50 mm²; light gray

Features

  • Universal connection for all conductor types
  • Simple, push-in termination of solid and ferruled conductors
  • Easy-to-use design does not require special tools
  • Ability to wire while mated or unmated
  • Integrated test ports for testing parallel to conductor entry
  • Custom-installed solder pins

Approvals

  • DEKRA Certification B.V., CSA, 2362521, C22.2
  • DEKRA Certification B.V., CB, NL-49737/A1, IEC 61984
  • Underwriters Laboratories Inc., UL, E45171, UL 1977
  • DEKRA Certification B.V., KEMA/KEUR, 71-102261 REV.2, EN 61984
  • Underwriters Laboratories Inc., cURus, E45172, UL 1059

Specifications

Notes

  • Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 16 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-button
  • Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
  • Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 8

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 40 mm / 1.575 inch
  • Height: 13.4 mm / 0.528 inch
  • Depth: 40.4 mm / 1.591 inch
  • Solder pin length: 3.6 mm
  • Solder pin diameter: 1.4 mm
  • Drilled hole diameter with tolerance: 1.6 (+0.1) mm

Mechanical Data

  • Design: With gripping plate

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For PCB
  • Mismating protection: No
  • Mating direction to the PCB: 0 °
  • Locking of plug-in connection: Without

Pcb Contact

  • PCB Contact: THT

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.035 MJ
  • Weight: 9.699 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821354499
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
