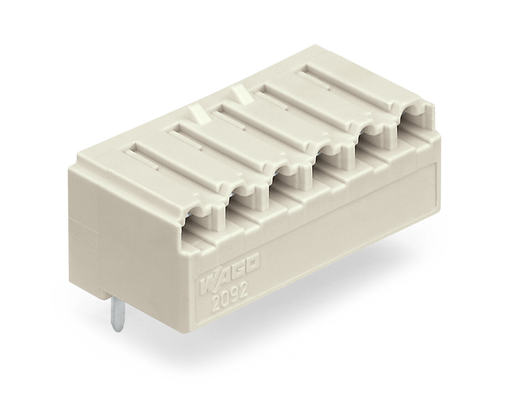

Features

• Touch-proof PCB outputs
• Easy-to-identify PCB inputs and outputs
• Coding option available

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 71-102261 REV.2, EN 61984
• DEKRA Certification B.V., CSA, 2362521, C22.2
• DEKRA Certification B.V., CSA, 2362521, C22.2 No. 158
• Underwriters Laboratories Inc., cURus, E45172, UL 1059
• Underwriters Laboratories Inc., UL, E45171, UL 1977

Specifications

Notes

• Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 16 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Connection 1

• Pole No.: 6

Physical Data

• Pin spacing: 5 mm / 0.197 inch
• Width: 30 mm / 1.181 inch
• Height: 17.2 mm / 0.677 inch
• Height from the surface: 13.6 mm / 0.535 inch
• Depth: 15.4 mm / 0.606 inch
• Solder pin length: 3.6 mm
• Solder pin dimensions: 0.4 x 1.3 mm
• Drilled hole diameter with tolerance: 1.5 (+0.1) mm

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For PCB
• Mismating protection: No
• Mating direction to the PCB: 0 °
• Locking of plug-in connection: Without

Pcb Contact

• PCB Contact: THT

Material Data

• Color: Light gray
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.138 MJ
• Weight: 5.860 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821163725
• Customs tariff number Sales Organisation Germany: 85366990990
