WAGO 2092-1303/200-000

2092-1303/200-000 WAGO 2092-1303/200-000

WAGO 2092-1303/200-000
Part # 2092-1303/200-000
Manufacturer Wago
GTIN 4050821395461
Condition New
Price: $ 2.51

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

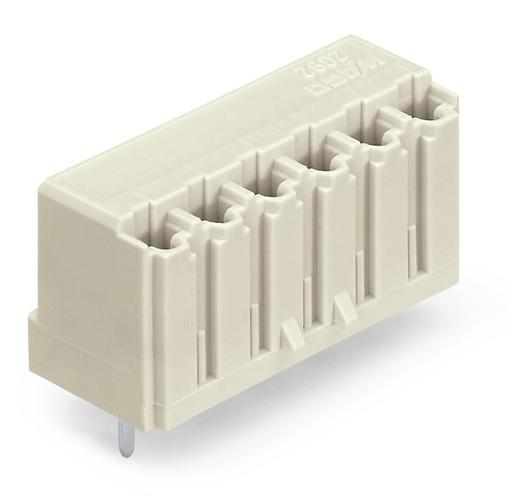

THT female header 0.4 x 1.3 mm solder pin straight, light gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
THT female header 0.4 x 1.3 mm solder pin straight, light gray

Features

  • Assembly of female connectors without loss of poles, allowing different functions to be divided within one male header
  • Coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications
  • The female connector is fully shrouded by the male header's housing, providing vibration resistance up to 20 g

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-102261 REV.2, EN 61984
  • Underwriters Laboratories Inc., cURus, E45172, UL 1059
  • Underwriters Laboratories Inc., UL, E45171, UL 1977
  • DEKRA Certification B.V., CSA, 2362521, C22.2

Specifications

Notes

  • Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Tape-and-reel packaging || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 16 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Connection 1

  • Pole No.: 3

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 15 mm / 0.591 inch
  • Height: 18.6 mm / 0.732 inch
  • Height from the surface: 16.2 mm / 0.638 inch
  • Depth: 13.6 mm / 0.535 inch
  • Solder pin length: 2.4 mm
  • Solder pin dimensions: 0.4 x 1.3 mm
  • Plated through-hole diameter (THR): 1.5 (+0.1) mm

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For PCB
  • Mismating protection: No
  • Mating direction to the PCB: 90 °
  • Locking of plug-in connection: Without

Pcb Contact

  • PCB Contact: THR

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.069 MJ
  • Weight: 2.780 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821395461
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
