WAGO 2091-1712/200-000

2091-1712/200-000 WAGO 2091-1712/200-000

WAGO 2091-1712/200-000
Part # 2091-1712/200-000
Manufacturer Wago
GTIN 4055143935920
Condition New
Price: $ 2.02

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

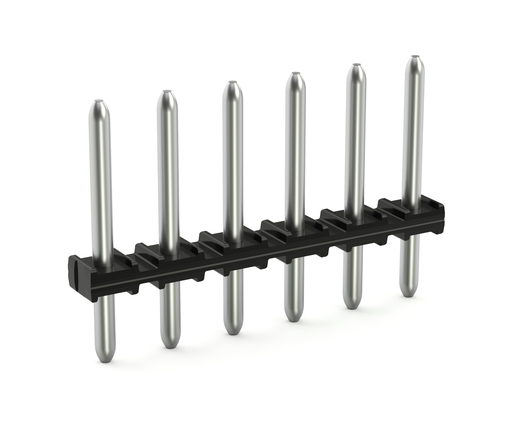

Solder pin strip 1.0 mm Ø solder pin straight, black
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Solder pin strip 1.0 mm Ø solder pin straight, black

Features

  • Lötstiftleisten mit geraden und abgewinkelten Lötstiften für rechtwinklige und parallele Steckrichtung zur Leiterplatte
  • Polverlustfreies Aneinanderreihen von mehreren Federleisten in einer Lötstiftleiste zur Trennung von Funktionen möglich

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-102260 REV.1, EN 61984
  • DEKRA Certification B.V., CSA, 2362521, C22.2
  • DEKRA Certification B.V., CB, NL-49736/A1, IEC 61984
  • Underwriters Laboratories Inc., UL, E45171, UL 1977

Specifications

Notes

  • Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 160 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 10 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

  • Pole No.: 12

Physical Data

  • Pin spacing: 3.5 mm / 0.138 inch
  • Width: 43.5 mm / 1.713 inch
  • Height: 11.7 mm / 0.461 inch
  • Height from the surface: 9.3 mm / 0.366 inch
  • Depth: 2.5 mm / 0.098 inch
  • Solder pin length: 2.4 mm
  • Solder pin diameter: 1 mm
  • Plated through-hole diameter (THR): 1.2 (+0.1) mm

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mismating protection: No
  • Mating direction to the PCB: 90 °
  • Locking of plug-in connection: Without

Pcb Contact

  • PCB Contact: THR

Material Data

  • Color: Black
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 1.080 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4055143935920
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
