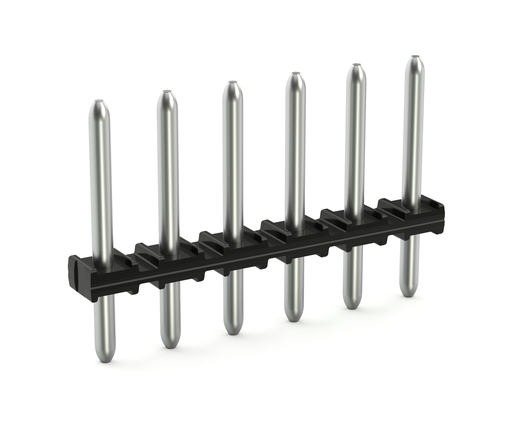

Features

• Lötstiftleisten mit geraden und abgewinkelten Lötstiften für rechtwinklige und parallele Steckrichtung zur Leiterplatte
• Polverlustfreies Aneinanderreihen von mehreren Federleisten in einer Lötstiftleiste zur Trennung von Funktionen möglich

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 71-102260 REV.1, EN 61984
• DEKRA Certification B.V., CSA, 2362521, C22.2
• DEKRA Certification B.V., CB, NL-49736/A1, IEC 61984
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• Underwriters Laboratories Inc., UL, E45171, UL 1977

Specifications

Notes

• Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 160 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 10 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

• Pole No.: 10

Physical Data

• Pin spacing: 3.5 mm / 0.138 inch
• Width: 36.5 mm / 1.437 inch
• Height: 12.9 mm / 0.508 inch
• Height from the surface: 9.3 mm / 0.366 inch
• Depth: 2.5 mm / 0.098 inch
• Solder pin length: 3.6 mm
• Solder pin diameter: 1 mm
• Drilled hole diameter with tolerance: 1.2 (+0.1) mm

Plug-In Connection

• Contact type (pluggable connector): Male connector/plug
• Connector (connection type): For PCB
• Mismating protection: No
• Mating direction to the PCB: 90 °
• Locking of plug-in connection: Without

Pcb Contact

• PCB Contact: THT

Material Data

• Color: Black
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 0.980 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143934831
• Customs tariff number Sales Organisation Germany: 85369010000
