WAGO 2091-1532/002-3000

2091-1532/002-3000 WAGO 2091-1532/002-3000

WAGO 2091-1532/002-3000
Part # 2091-1532/002-3000
Manufacturer Wago
GTIN 4055143623094
Condition New
Price: $ 10.15

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

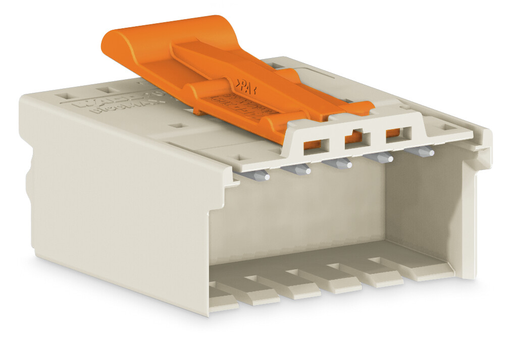

1-conductor male connector; Integrated release lever; direct marking; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; 1,50 mm²; light gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
1-conductor male connector; Integrated release lever; direct marking; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; 1,50 mm²; light gray

Features

  • Universal connection for all conductor types
  • Simple, push-in termination of solid and ferruled conductors
  • Easy-to-use design does not require special tools
  • Testing parallel to conductor entry – tip contact
  • For “wire-to-wire” and “board-to-wire” connections
  • Integrated release lever

Approvals

  • Underwriters Laboratories Inc., UL, E45171, UL 1977
  • DEKRA Certification B.V., CB, NL-49736/A1, IEC 61984
  • DEKRA Certification B.V., KEMA/KEUR, 71-102260 REV.1, EN 61984
  • DEKRA Certification B.V., CSA, 2362521, C22.2

Specifications

Notes

  • Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 160 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 10 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-button
  • Solid conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
  • Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 0.75 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Pole No.: 12

Physical Data

  • Pin spacing: 3.5 mm / 0.138 inch
  • Width: 44 mm / 1.732 inch
  • Height: 15.9 mm / 0.626 inch
  • Depth: 28 mm / 1.102 inch

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For conductor
  • Mismating protection: No
  • Locking of plug-in connection: Locking latch

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.018 MJ
  • Weight: 11.314 g

Environmental Requirements

  • Limit temperature range: -60 … +100 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143623094
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
