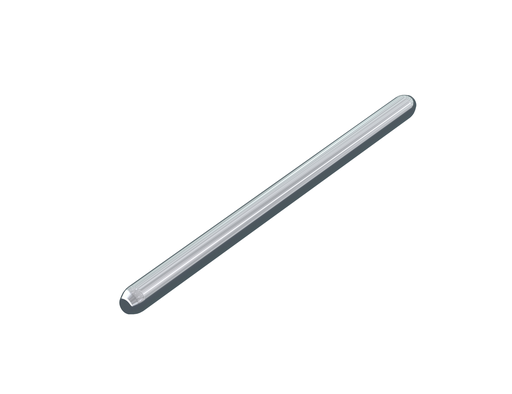

WAGO 2065-133

2065-133 WAGO 2065-133

WAGO 2065-133
Part # 2065-133
Manufacturer Wago
GTIN 4055143862738
Condition New
Price: $ 0.10

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Board-to-Board Link; Pin spacing 6.5 mm; Length: 17.6 mm
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Board-to-Board Link; Pin spacing 6.5 mm; Length: 17.6 mm

Features

  • Board-to-board links simplify in-line assembly of LED modules
  • Space saving connection of PCBs

Specifications

Notes

  • Safety information 1: NOTE: Terminal block without insulation housing! Protection against accidental contact must be provided at voltages higher than low voltages (e.g., SELV/PELV) for the relevant application.
  • Note: The layout must meet the requirements of the insulation coordination standard EN/IEC 60664-1 and applicable end product standards.

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 9 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Physical Data

  • Depth: 17.6 mm / 0.693 inch
  • Length: 17.6 mm
  • Diameter: 1 mm

Mechanical Data

  • Mating cycles (max.): 10
  • Number of mating cycles: Max. 10 connections/disconnections
  • Suitable: For SMD PCB terminal blocks (2065 Series)

Material Data

  • Color: Silver-colored
  • Contact material: Copper alloy
  • Contact plating: Silver-plated
  • Fire load: 0.000 MJ
  • Weight: 0.120 g

Environmental Requirements

  • Limit temperature range: -60 … +120 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143862738
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
