Features

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-1

Specifications

Electrical Data

• Switching current (resistive) (max.): 10 A
• Inrush current (max.): 128 A
• Switching voltage (max.): AC 250 V
• Contact resistance: ≤ 20 mΩ
• Insulation resistance: ≥ 100 MΩ (500 VDC; New condition)
• Electrical life (NO; resistive load; 23 °C): 10 x 103 switching operations; UL: 6 x 103 switching operations

Safety And Protection

• Rated voltage: 250 V
• Pollution degree: 2
• Overvoltage category: II
• Dielectric strength, open contact (AC, 1 min): 1.5 kVrms
• Protection type: IP20

Physical Data

• Width: 15.5 mm / 0.61 inch
• Height: 87 mm / 3.425 inch
• Height from the surface: 68 mm / 2.677 inch
• Depth: 52 mm / 2.047 inch

Mechanical Data

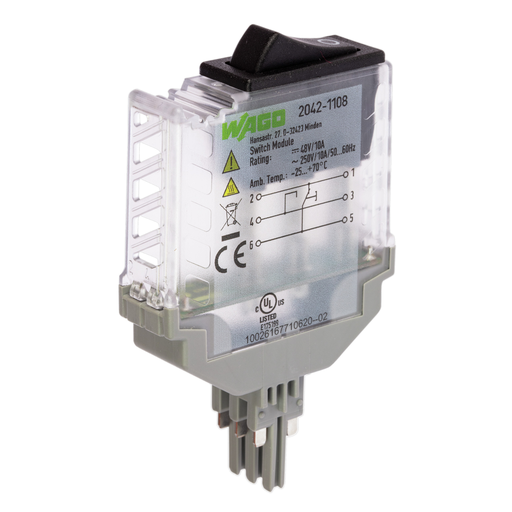

• Mounting type: Pluggable module for TOPJOB® S Carrier Terminal Block

Material Data

• Color: Translucent
• Flammability class per UL94: V0
• Fire load: 0.149 MJ
• Weight: 29.300 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201 || EN 50155 || EN 61373

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143883818
• Customs tariff number Sales Organisation Germany: 85365080900
