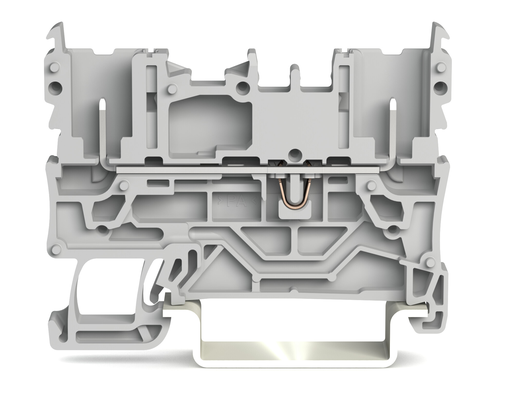

WAGO 2022-1601

2022-1601 WAGO 2022-1601

WAGO 2022-1601
Part # 2022-1601
Manufacturer Wago
GTIN 4055143828826
Condition New
Price: $ 1.29

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; gray

Features

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-116567, EN 60947
  • DEKRA Certification B.V., CCA, NTR CCA NL-7864, EN 60947
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • DEKRA Certification B.V., CCA, 2437422, C22.2 No. 158

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 690 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 24 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 20 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 20 A

Ratings Per Csa

  • Approvals per: C22.2 No 158
  • Rated voltage CSA (Use Group C): 600 V
  • Rated current CSA (Use Group C): 20 A

Connection Data

  • Total number of potentials: 1
  • Number of levels: 1

Physical Data

  • Width: 5.2 mm / 0.205 inch
  • Height: 52 mm / 2.047 inch
  • Depth from upper edge of DIN-rail: 32.5 mm / 1.28 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.125 MJ
  • Weight: 5.490 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4055143828826
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
