WAGO 2010-7114

2010-7114 WAGO 2010-7114

WAGO 2010-7114
Part # 2010-7114
Manufacturer Wago
GTIN 4055143879699
Condition New
Price: $ 7.02

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

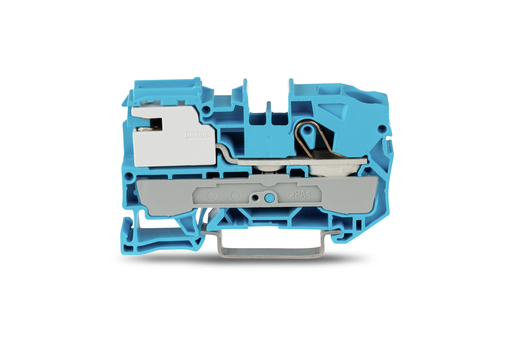

1-conductor N-disconnect terminal block; 10 mm²; Push-in CAGE CLAMP®; 10,00 mm²; blue
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
1-conductor N-disconnect terminal block; 10 mm²; Push-in CAGE CLAMP®; 10,00 mm²; blue

Features

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 71-119201, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL 7876, EN 60947

Specifications

Ratings Per Iec/En

  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated current: 57 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 10 mm²
  • Solid conductor: 0.5 … 16 mm² / 20 … 6 AWG
  • Solid conductor; push-in termination: 4 … 16 mm² / 14 … 6 AWG
  • Fine-stranded conductor: 0.5 … 16 mm² / 20 … 6 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 10 mm² / 20 … 8 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 4 … 10 mm² / 12 … 8 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 17 … 19 mm / 0.67 … 0.75 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 10 mm / 0.394 inch
  • Height: 67.3 mm / 2.65 inch
  • Depth from upper edge of DIN-rail: 38.1 mm / 1.5 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Blue
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.038 MJ
  • Weight: 21.722 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143879699
  • Customs tariff number Sales Organisation Germany: 85365080900
: *
: *
: *
