WAGO » Rail Mounted Terminal Blocks » Series 2006 » WAGO 2006-1631/1099-859

WAGO 2006-1631/1099-859

2006-1631/1099-859 WAGO 2006-1631/1099-859

WAGO 2006-1631/1099-859
Part # 2006-1631/1099-859
Manufacturer Wago
GTIN 4055143618649
Condition New
Price: $ 24.17

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

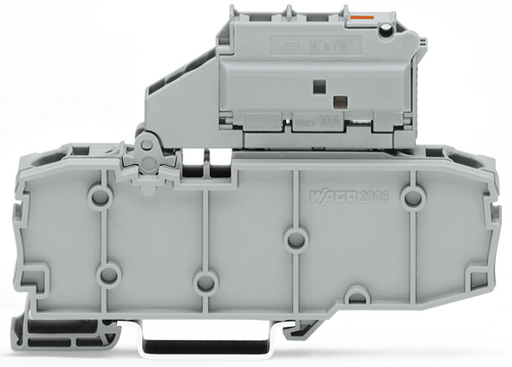

2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for glass cartridge fuse ¼" x 1¼"; with blown fuse indication by LED; 380 - 500 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for glass cartridge fuse ¼" x 1¼"; with blown fuse indication by LED; 380 - 500 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; gray

Features

Approvals

  • DEKRA Certification B.V., CSA, 1543858, C22.2 No. 158
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL 7877, IEC 60947
  • DEKRA Certification B.V., CCA, 71-119205, IEC 60947
  • UL International Germany GmbH, UL, E45172, UL 1059
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-3
  • Ratings (note): Electrical ratings are given by the fuse and blown fuse indication.
  • Nominal voltage (III/3): 800 V
  • Rated surge voltage (III/3): 8 kV
  • Rated current: 10 A
  • Note on rated current 1: Leakage current in case of a blown fuse: LED 2 mA
  • Operation status indicator: 380 … 500 V
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 500 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group C): 500 V
  • Rated current UL (Use Group C): 15 A

Ratings Per Csa

  • Approvals per: C22.2 No 158
  • Rated voltage CSA (Use Group B): 600 V
  • Rated current CSA (Use Group B): 15 A
  • Rated voltage CSA (Use Group C): 600 V
  • Rated current CSA (Use Group C): 15 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 6 mm²
  • Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
  • Solid conductor; push-in termination: 1 … 10 mm² / 14 … 8 AWG
  • Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 13 … 15 mm / 0.51 … 0.59 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 10.4 mm / 0.409 inch
  • Height: 96.3 mm / 3.791 inch
  • Depth from upper edge of DIN-rail: 59 mm / 2.323 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking
  • Art der Sicherung: Cylindrical fuse 1/4" x 1 1/4"

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.458 MJ
  • Weight: 29.150 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143618649
  • Customs tariff number Sales Organisation Germany: 85369095000
: *
: *
: *
