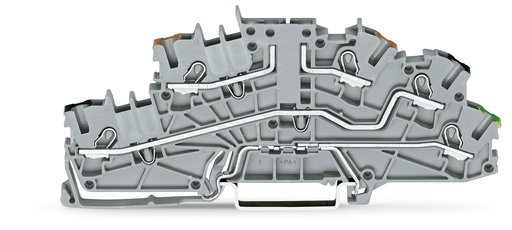

Features

Approvals

• Underwriters Laboratories Inc., UL, E45172, UL 1059
• DEKRA Certification B.V., CCA, 71-113530, EN 60947
• DEKRA Certification B.V., CSA, 70111102, C22.2 No. 158
• DEKRA Certification B.V., CCA, NTR NL-7828, EN 60947

Specifications

Ratings Per Iec/En

• Ratings (note): Potential – ground
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated current: 20 A
• Note on rated current 1: Maximum current depends on accessories used.
• Ratings (note) 2: Potential – potential
• Rated voltage (III/3) 2: 400 V
• Rated surge voltage (III/3) 2: 6 kV
• Rated current 2: 25 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 250 V
• Rated current UL (Use Group B): 6.3 A
• Rated voltage UL (Use Group C): 150 V
• Rated current UL (Use Group C): 6.3 A
• Rated voltage UL (Use Group D): 250 V
• Rated current UL (Use Group D): 6.3 A

Ratings Per Csa

• Rated voltage CSA (Use Group D): 300 V || 150 V
• Rated current CSA (Use Group D): 10 A || 15 A
• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 20 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 2.5 mm²
• Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 10 … 12 mm / 0.39 … 0.47 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 5.2 mm / 0.205 inch
• Height: 110 mm / 4.331 inch
• Depth from upper edge of DIN-rail: 45.2 mm / 1.78 inch

Mechanical Data

• Potentialkennzeichnung: P1/P2/PE
• Design: Angled
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.309 MJ
• Weight: 19.942 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143053501
• Customs tariff number Sales Organisation Germany: 85369010000
