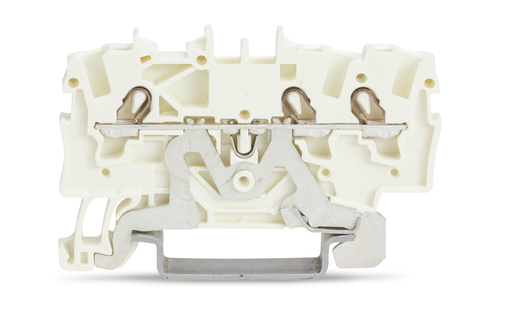

WAGO 2001-1308

2001-1308 WAGO 2001-1308

WAGO 2001-1308
Part # 2001-1308
Manufacturer Wago
GTIN 4055143448222
Condition New
Price: $ 6.02

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
3-conductor shield terminal block; 1.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; white
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
3-conductor shield terminal block; 1.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; white

Features

Approvals

  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • DEKRA Certification B.V., CCA, 2160584.07, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL-7084, EN 60947
  • DEKRA Certification B.V., CSA, 1645434, C22.2 No. 158
  • UL International Germany GmbH, UL, E45172, UL 1059
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-2

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 1.5 mm²
  • Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
  • Solid conductor; push-in termination: 0.75 … 2.5 mm² / 18 … 14 AWG
  • Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm² / 22 … 16 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 0.75 … 1.5 mm² / 18 … 16 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 9 … 11 mm / 0.35 … 0.43 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 4.2 mm / 0.165 inch
  • Height: 59.2 mm / 2.33 inch
  • Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: White
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.000 MJ
  • Weight: 7.958 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143448222
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
