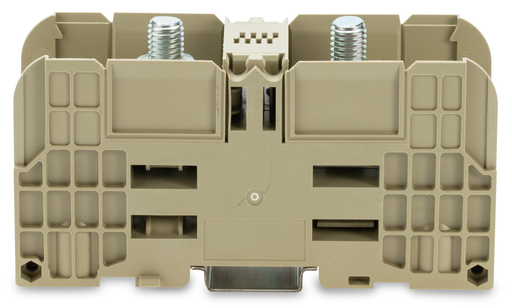

Specifications

Ratings Per Iec/En

• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 269 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 1000 V
• Rated current UL (Use Group B): 225 A
• Rated current UL (Use Group B), factory wiring only: 310 A
• Rated voltage UL (Use Group C): 1000 V
• Rated current UL (Use Group C): 225 A
• Rated current UL (Use Group C), factory wiring only: 310 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 1000 V
• Rated current CSA (Use Group B): 310 A
• Rated voltage CSA (Use Group C): 1000 V
• Rated current CSA (Use Group C): 310 A

Connection 1

• Connection technology: Bolt-type connection
• Actuation type: Open-end, ring, socket wrench; 17 mm
• Connectable conductor materials: Copper
• Nominal cross-section: 120 mm²
• Clamping range: 6 … 120 mm² / 10 AWG … 250 kcmil
• Type of cable lugs according to DIN 46234: Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors
• DIN46234: 1 cable lug per side: 6 … 150 mm²
• DIN 46234: 2 cable lugs per side: 6 … 120 mm²
• Type of cable lugs according to DIN 46235: Cable lugs for compression connectionsCover plate type for copper conductors
• DIN46235: 1 cable lug per side: 16 … 150 mm²
• DIN 46235: 2 cable lugs per side: 16 … 120 mm²
• Bolt thread: M10

Physical Data

• Width: 42 mm / 1.654 inch
• Height: 133 mm / 5.236 inch
• Depth from upper edge of DIN-rail: 72 mm / 2.835 inch

Mechanical Data

• Tightening torque: 10 … 20 Nm
• Mounting type: DIN-35 rail || Panel mounting

Material Data

• Color: Beige
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.000 MJ
• Weight: 230.000 g

Environmental Requirements

• Continuous operating temperature: -40 … +120 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143941815
• Customs tariff number Sales Organisation Germany: 85369095000
