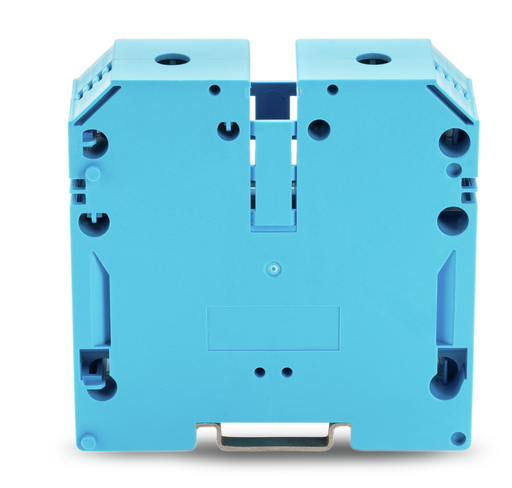

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 269 A
• Rated current 2: 290 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 228 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 228 A
• Rated voltage UL (Use Group D): 600 V
• Rated current UL (Use Group D): 228 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 600 V
• Rated current CSA (Use Group B): 228 A
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 228 A
• Rated voltage CSA (Use Group D): 600 V
• Rated current CSA (Use Group D): 228 A

Connection 1

• Connection technology: Screw-type connection
• Actuation type: T-wrench; 6 mm
• Connectable conductor materials: Copper
• Nominal cross-section: 120 mm²
• Solid conductor: 16 … 150 mm² / 6 AWG … 300 kcmil
• Stranded conductor: 16 … 150 mm² / 6 AWG … 300 kcmil
• Fine-stranded conductor: 16 … 120 mm² / 6 AWG … 250 kcmil
• Fine-stranded conductor; with insulated ferrule: 16 … 95 mm² / 6 … 3/0 AWG
• Strip length: 27 mm / 1.06 inch
• Wiring direction: Side-entry wiring
• Screw thread: M10

Physical Data

• Width: 27 mm / 1.063 inch
• Height: 91 mm / 3.583 inch
• Depth from upper edge of DIN-rail: 90 mm / 3.543 inch

Mechanical Data

• Tightening torque: 12 … 20 Nm
• Design: Horizontal type
• Mounting type: DIN-rail 35 x 7.5
• Marking level: Side marking

Material Data

• Color: Blue
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.000 MJ
• Weight: 280.700 g

Environmental Requirements

• Continuous operating temperature: -35 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143940610
• Customs tariff number Sales Organisation Germany: 85369010000
