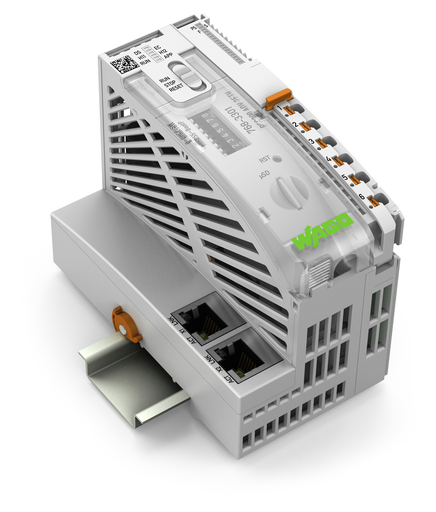

Features

• Programming per IEC 61131-3
• Programmable via e!COCKPIT
• 2 x ETHERNET (configurable)
• Configuration via e!COCKPIT or Web-Based-Management user interface
• Maintenance-free

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201
• Underwriters Laboratories Inc., UL, E198726, UL 121201

Specifications

Technical Data

• Communication: Modbus (TCP, UDP)
• ETHERNET protocols: DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH
• Visualization: Web Visu
• Operating system: Real-time Linux (with RT-Preempt patch)
• CPU: Cortex A8; 1 GHz
• Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
• Programming environment: e!COCKPIT (based on CODESYS V3)
• Configuration options: e!COCKPIT || Web-Based Management || e!RUNTIME Library || CODESYS Library
• Baud rate (communication/fieldbus 1): 10/100 Mbit/s
• Baud rate: 10/100 Mbit/s
• Transmission medium (communication/fieldbus): Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Main memory (RAM): 512 MB
• Internal memory (flash): 4096 MB
• Non-volatile hardware memory: 64 kB
• Program memory: 32 MB
• Data memory: 128 MB
• Non-volatile software memory: 64 kB
• Memory card type: MicroSD up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
• Memory card slot: Push-push mechanism
• Number of modules per node (max.): 250
• Input and output (internal) process image (max.): 1000 Worte/1000 Worte
• Input and output (MODBUS) process image (max.): e!RUNTIME: 1000 Worte/1000 Worte
• Indicators: LED (DS, H11, H12, RUN, APP) red/green/orange: Device status, module status, network status, IEC RUN, application; LED (EC) red/blue/magenta: Error; LED (S, F) green: System supply, field supply
• Supply voltage (system): 24 VDC, SELV (-25 … +30 %); US
• Power supply efficiency (typ.) at nominal load (24 V): 95 %
• Power consumption – system supply (power supply) at max. local bus supply: 850 mA
• Power consumption – system supply (power supply) without local bus supply: 180 mA
• Total current for system supply (local bus) max.: 3000 mA
• Supply voltage (field): 24 VDC, SELV (-25 … +30 %); UF
• Current carrying capacity (power jumper contacts): 12 A
• Current carrying capacity (power jumper contacts) note: Requires external fusing (12.5 A fast) of the field supply
• Number of outgoing power jumper contacts: 2
• Power loss Pl: 4.8 W
• Isolation (field/system): Min. 1000 VDC (1 min); per EN/UL 61010-2-201
• Marking: Cl I, Div 2, Group A, B, C, D, T4

Connection Data

• Connection technology: communication/fieldbus: Modbus TCP/UDP: 2 x RJ-45
• Connection technology: system supply: 2 x Push-in CAGE CLAMP®
• Connection technology: field supply: 4 x Push-in CAGE CLAMP®
• Connection type (1): System/field supply
• Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Connection technology: device configuration: 1 x Service interface USB-C

Physical Data

• Width: 63 mm / 2.48 inch
• Height: 105 mm / 4.134 inch
• Depth: 75 mm / 2.953 inch

Mechanical Data

• Weight: 197.000 g
• Color: Light gray
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C (Horizontal, typical control cabinet installation; −25 … +50 °C, other mounting positions)
• Surrounding air temperature (storage): -40 … 85 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 25 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 85 °C
• Protection type: IP20
• Pollution degree (5): 2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 3000 m (0.5 K/100 m)
• Relative humidity (without condensation): 95 %
• Mounting position: Horizontal, typical for control cabinets (nominal mounting position); horizontal (floor mounting position); standing (vertical at bottom)
• Mounting type: DIN-35 rail
• EMC immunity to interference: Per EN 61000-6-1, -2
• EMC emission of interference: Per EN 61000-6-4
• Fire load: 0.459 MJ

Commercial Data

• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143975476
• Customs tariff number Sales Organisation Germany: 85371091990
