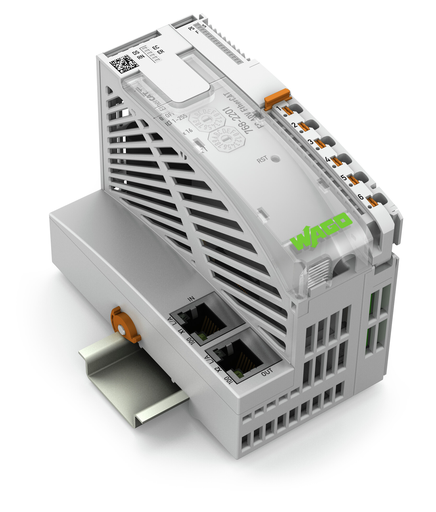

Features

Approvals

• Underwriters Laboratories Inc., UL, E198726, UL 121201
• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Technical Data

• Communication: EtherCAT
• Baud rate: 100 Mbit/s
• Transmission medium: Shielded twisted pair S/FTP, F/FTP or SF/FTP; 100 Ω; Cat. 6
• Transmission performance: Class D per EN 50173
• Number of modules per node (max.): 250
• Input and output (internal) process image (max.): 1000 Worte/1000 Worte
• Supply voltage (system): 24 VDC, SELV (-25 … +30 %); US
• Power consumption – system supply (power supply) at max. local bus supply: 900 mA
• Power consumption – system supply (power supply) without local bus supply: 160 mA
• Total current for system supply (local bus) max.: 3000 mA
• Supply voltage (field): 24 VDC, SELV (-25 … +30 %); UF
• Power supply efficiency (typ.) at nominal load (24 V): 95 %
• Power loss Pl: 4.3 W
• Isolation (field/system): Min. 1000 VDC (1 min); per EN/UL 61010-2-201
• Indicators: LED (DS, RN, ER) red/green/orange: Device status, EtherCAT® RUN, EtherCAT® error; LED (EC) red/blue/magenta: Error code; LED (S, F) gree: System supply, field supply
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 12 A
• Current carrying capacity (power jumper contacts) note: Requires external fusing (12.5 A fast) of the field supply
• Marking: Cl I, Div 2, Group A, B, C, D, T4

Connection Data

• Connection technology: communication/fieldbus: EtherCAT: 2 x RJ-45
• Connection technology: field supply: 4 x Push-in CAGE CLAMP®
• Connection technology: system supply: 2 x Push-in CAGE CLAMP®
• Connection technology: device configuration: 1 x Service interface USB-C
• Connection type (1): System/field supply
• Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Note (conductor cross-section): Insulated ferrule: 1.5 mm² (max.)

Physical Data

• Width: 63 mm / 2.48 inch
• Height: 105 mm / 4.134 inch
• Depth: 75 mm / 2.953 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.456 MJ
• Weight: 189.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C (Horizontal, typical control cabinet installation; −25 … +50 °C, other mounting positions)
• Surrounding air temperature (storage): -40 … 85 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 25 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 85 °C
• Protection type: IP20
• Pollution degree (5): 2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 3000 m (0.5 K/100 m)
• Mounting position: Horizontal, typical for control cabinets (nominal mounting position); horizontal (floor mounting position); standing (vertical at bottom)
• Relative humidity (without condensation): 95 %
• EMC immunity to interference: Per EN 61000-6-1, -2
• EMC emission of interference: Per EN 61000-6-3, -4

Commercial Data

• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143975759
• Customs tariff number Sales Organisation Germany: 85176200000
