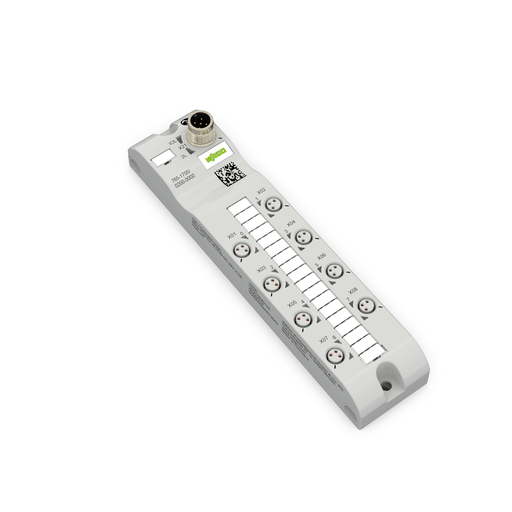

WAGO 765-1705/200-000

WAGO 765-1705/200-000
Part # 765-1705/200-000
Manufacturer Wago
Condition New
Price: $ 352.70
Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
8-channel digital input/output; IO Link Class B Hub; DC 24 V / 2.0 A; 8xM8 connection; HubLine
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
: *
: *
: *


8-channel digital input/output; IO Link Class B Hub; DC 24 V / 2.0 A; 8xM8 connection; HubLine

Specifications

Io-Link

  • Communication: IO-Link Class B Slave
  • Connection technology: communication/fieldbus: 1 x A-coded M12; 5-pole

Device Functions

  • Parameters: Input filter || Output current || Temperature
  • Diagnostics: Undervoltage; overcurrent; overload; overtemperature

Digital Inputs/Outputs

  • Number of digital inputs: 8
  • Number of digital outputs: 8
  • Connection technology: inputs/outputs: 8 x M8; 3-pole
  • Voltage signal type: 24 VDC
  • Input characteristic: High-side switching || Type 3, per IEC 61131-2
  • Input filter: 0.2 … 20 ms
  • Output current (per channel): 2 A

Power Supply

  • Connection technology: supply: 1 x A-coded M12; 5-pole; via IO-Link port (1L/2L)
  • Supply voltage: 24 VDC (18 … 31.2 V); 1L/2L
  • Power consumption (max.): 4000 mA
  • Power consumption (note): 1L: 0.2 A; 2L: 0.1 A; + load current
  • Reverse voltage protection: Yes

Geometrical Data

  • Width: 35 mm / 1.378 inch
  • Height: 30 mm / 1.181 inch
  • Depth: 158.5 mm / 6.24 inch

Mechanical Data

  • Weight: 120.000 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 70 °C
  • Surrounding air temperature (storage): -40 … 80 °C
  • Protection type: IP67
  • Protection class: III per EN 61140, IEC 61140, VDE 0140-1
  • Operating altitude: 0 … 2000 m
  • Pollution degree (5): 3 per EN 60664-1
  • Overvoltage category: II (EN 60664-1)
  • Vibration resistance: 5g per IEC 60068-2-6
  • Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
  • EMC immunity to interference: Per EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-4

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143949781
  • Customs tariff number Sales Organisation Germany: 85371098990
