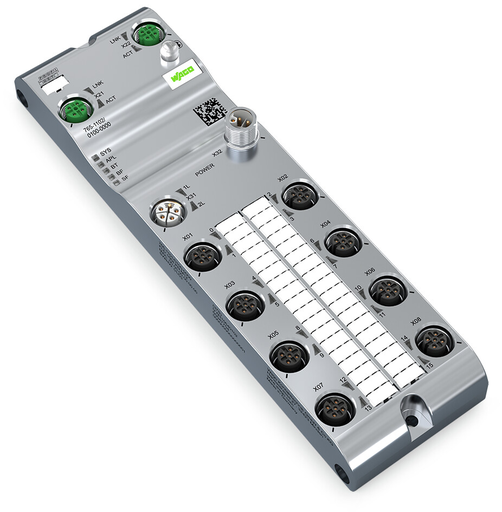

WAGO 765-1202/100-000

WAGO 765-1202/100-000
Part # 765-1202/100-000
Manufacturer Wago
Condition New
Price: $ 706.87
Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
16-channel digital input/output; EtherCAT; DC 24 V / 2.0 A; 8xM12 connection; WideLine
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
: *
: *
: *


16-channel digital input/output; EtherCAT; DC 24 V / 2.0 A; 8xM12 connection; WideLine

Specifications

Fieldbus

  • Communication: EtherCAT || AoE, EoE, FoE
  • Connection technology: communication/fieldbus: 2 x D-coded M12; 4-pole
  • Interface standard: 10BASE-T/100BASE-TX; potential-free
  • Autonegotiation; autocrossover: Yes

Device Functions

  • Parameters: Input filter || Output current || Temperature
  • Diagnostics: Undervoltage; overcurrent; overload; overtemperature
  • Device functions: Bluetooth® || OPC UA Server
  • Visualization: Android/iOS app || Webserver

Digital Inputs/Outputs

  • Number of digital inputs: 16
  • Number of digital outputs: 16
  • Connection technology: inputs/outputs: 8 x A-coded M12; 5-pole
  • Voltage signal type: 24 VDC
  • Input characteristic: High-side switching || Type 3, per IEC 61131-2
  • Input filter: 0.2 … 20 ms
  • Output current (per channel): 2 A (typ.) for DO
  • Supply current per port: 1L/2L: 4 A (max.)

Module Power Supply

  • Connection technology: supply: 2 x L-coded M12; 5-pole
  • Supply voltage: 24 VDC (18 … 31.2 V); 1L/2L
  • Power consumption (max.): 16000 mA
  • Power consumption (note): Per supply line; overload- and short-circuit-protected
  • Reverse voltage protection: Yes

Geometrical Data

  • Width: 60 mm / 2.362 inch
  • Height: 30 mm / 1.181 inch
  • Depth: 210 mm / 8.268 inch

Mechanical Data

  • Weight: 610.000 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 70 °C
  • Surrounding air temperature (storage): -40 … 80 °C
  • Protection type: IP67
  • Protection class: III per EN 61140, IEC 61140, VDE 0140-1
  • Operating altitude: 0 … 2000 m
  • Pollution degree (5): 3 per EN 60664-1
  • Overvoltage category: II (EN 60664-1)
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: 5g per IEC 60068-2-6
  • Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
  • EMC immunity to interference: Per EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-4

Commercial Data

  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055144009934
  • Customs tariff number Sales Organisation Germany: 85371098990
