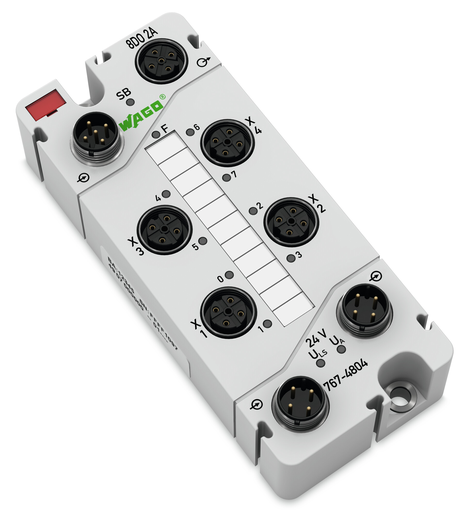

WAGO 767-4804

767-4804 WAGO 767-4804

WAGO 767-4804
Part # 767-4804
Manufacturer WAGO
GTIN 4045454545239
Condition New
Price: $ 246.30

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SPDWY 8DO 24V DC 2,0A (4xM12)
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Digital output module DC 24 V / 2.0 A 8 outputs (4 x M12, two outputs per connector)

Features

  • 1 x WMB marker, red
  • 1 x marking strip
  • 2 x M12 protective cap

Approvals

  • DEKRA EXAM GmbH, IECEx, IECEx_BVS_15.0083_X, IEC 60079-0
  • UL International Germany GmbH, UL, E175199 Sec.5, UL 508
  • DEKRA EXAM GmbH, ATEX, BVS_15_ATEX_E_098_X, EN 60079-0

Specifications

Technical Data

  • Number of digital outputs: 8
  • Total number of channels (module): 8
  • Signal type: Voltage
  • Voltage signal type: 24 VDC
  • Actuator connection: 8 x (2-wire, 3-wire)
  • Output characteristic: High-side switching
  • Output current per channel: 2 A
  • Output current (module): 8 A
  • Output current: Short-circuit/overload-protected
  • Leakage current in OFF state: 780 µA
  • Switching frequency (max.): 500 Hz; Inductive load
  • Switching frequency (max.) (2): 20 Hz; Resistive load
  • Switching frequency (max.) (3): 500 Hz; Lamp load
  • Load type: Resistive, inductive, lamp load
  • Load type of switching frequency: Inductive load
  • Process data width: 1-byte data + status
  • Parameterizable functions: I/O diagnostics (per module): Undervoltage (ULS + UA) || I/O diagnostics (per channel): Short circuit/overload (actuators); Wire break (actuators); Overtemperature || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: 0/1; Diagnostics || Inversion (per channel): On/Off || Substitute value (per channel): 0/1 || Substitute value strategy (per channel): Switch substitute value/Hold last value || Manual mode (per channel): On/Off || Manual mode value (by channel): 0/1
  • Protection: Reverse voltage protection for ULS + Uo
  • Output resistance: 0.1 Ω
  • Supply voltage (system and sensor): 24 VDC(-25 … +30 %); Logic and sensors (ULS)
  • Power consumption (system and sensor): 45 mA
  • Power consumption, system and sensor (note): Logic component only
  • Supply voltage (field): 24 VDC (-25 … +30 %); Actuators (UA)
  • Power consumption, field supply (module with no external load): 55 mA
  • Isolation: 500 V supply/system bus
  • Indicators: LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (0 … 7) yellow/red: Status/diagnostics DO 1 … DO 8; Non-retentive displays
  • Current carrying capacity (supply connections): 8 A
  • Drop-out time from “1” to “0”: Typ. 50 µs (resistive load)
  • Rise time from “0” to “1”: Typ. 30 µs (resistive load)
  • Output operation: Non-retentive
  • Protection against reverse voltages: 2 A
  • Voltage drop against UA: 0.2
  • S-bus (system bus) disruption: 0 V status

Connection Data

  • Connection technology: inputs/outputs: 4 x M12 socket; A-coded; 4-pole
  • Connection technology: field supply: 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket, 4-pole, A-coded
  • Connection technology: system supply: 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded
  • Connection technology: system bus: 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
  • Connection requirement, permissible cable length: 30 m
  • Connection requirement (permissible cable type): Digital outputs: unshielded

Physical Data

  • Width: 50 mm / 1.969 inch
  • Height: 35.7 mm / 1.406 inch
  • Depth: 117 mm / 4.606 inch

Material Data

  • Color: Light gray
  • Housing material: Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
  • Fire load: 0.000 MJ
  • Weight: 262.300 g
  • Conformity marking: CE
  • Encapsulation: Polyurethane (PUR), halogen/silicon-free

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 60 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP67
  • Protection class: III
  • Operating altitude: −1000 … 2000 m; Air pressure: 1080 … 795 hPa
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: 5g per IEC 60068-2-6
  • Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
  • EMC immunity to interference: Per EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-4
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 0.1 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 0.5 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454545239
  • Customs tariff number Sales Organisation Germany: 85371098990
: *
: *
: *
