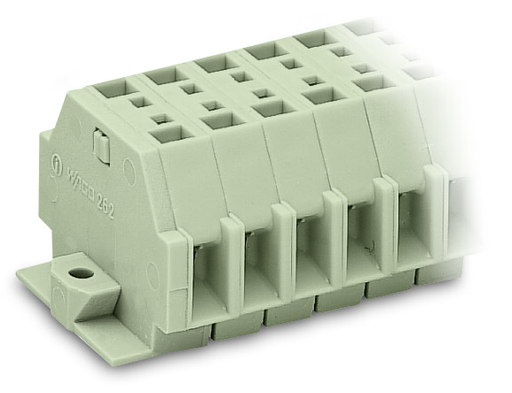

Features

Approvals

• CQST/CNEx, CCCEx, 2020312313000186, CNCA-C23-01
• Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 98 ATEX 3125 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079
• Lloyds Register, LR, 91/20242 (E7), IEC 60998
• UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
• Physikalisch Technische Bundesanstalt (PTB), IECEx, IECEx PTB 04.0004U Ex eb IIC Gb or Ex eb I Mb, IEC 60079
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• DEKRA Certification B.V., CSA, 70010891, C22.2
• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011

Specifications

Ex Information

• Rated voltage EN (Ex e II): 550 V
• Rated current (Ex e II): 23 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Pole No.: 10
• Wiring direction: Side-entry wiring

Physical Data

• Width: 84.4 mm / 3.323 inch
• Height from the surface: 23.1 mm / 0.909 inch
• Depth: 33.5 mm / 1.319 inch
• Module width: 7 mm / 0.276 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: Mounting flange
• Marking level: Side marking

Material Data

• Color: Light gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.826 MJ
• Weight: 45.147 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918639996
• Customs tariff number Sales Organisation Germany: 85369010000
