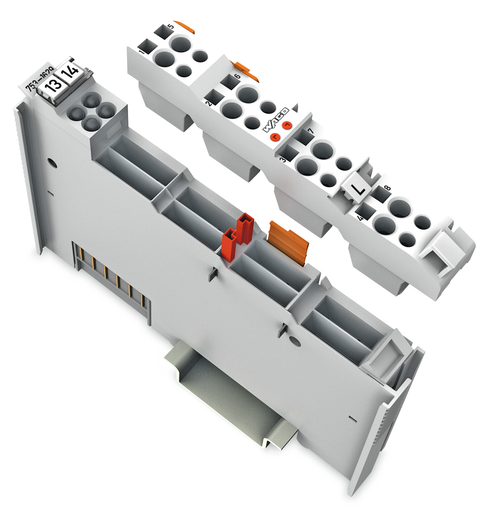

WAGO 753-1629

753-1629 WAGO 753-1629

WAGO 753-1629
Part # 753-1629
Condition New
Price: $ 54.73

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Spacer module
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Spacer module

Features

Approvals

  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • National Radio Research Agency, KC, MSIP-REM-W43-END750, Article 58-2, Clause 3

Specifications

Notes

  • Note: Pluggable connectors and coding fingers (753 Series) are not included.

Technical Data

  • Supply voltage (system): 5 VDC; via data contacts
  • Supply voltage (field): ; Field-side supply via power jumper contacts
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 69.8 mm / 2.748 inch
  • Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Wiring interface: Pluggable

Material Data

  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.766 MJ
  • Weight: 35.700 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: Per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821331902
  • Customs tariff number Sales Organisation Germany: 85389091890
: *
: *
: *
