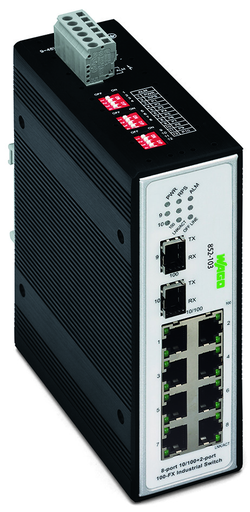

Features

• Redundant DC power supply
• Large supply voltage range: 9 … 48 V
• DIP switches to set alarm functions
• Full compliance with IEEE802.3, 802.3u stantards
• Non-blocking, store-and-forward switching
• Autonegotiation at all 10/100Base-TX ports
• Auto-MDI/MDIX (crossover) at all 10/100Base-TX ports

Approvals

• Underwriters Laboratories Inc., UL, E175199 Sec.7, UL 508
• National Radio Research Agency, KC, MSIP-REM-W43-ISW852, Article 58-2, Clause 3

Specifications

Technical Data

• Switching mode: Store‐and‐forward; non-blocking
• Number of 100Base-TX ports: 8
• Number of 100Base-FX ports: 2
• Communication standards: IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX/FX || IEEE 802.3x Flow Control
• Redundancy function: Redundant DC power supply
• Configuration options: DIP switch for signal contact
• Diagnostics: Signal contact
• MAC table (size): 2000 addresses
• Jumbo frame size: 1536 Byte
• Supply voltage: 9 … 48 VDC; Cable length:< 3 m
• Power consumption (max.): 6.08 W
• Power consumption typ. (24 V): 5.76 W
• ESD (contact/air discharge): 8 KV / 15 KV
• Baud rate: Copper cable: 10/100 Mbit/s; Fiber optic:100 Mbit/s
• Transmission medium (communication/fieldbus): Copper cable: Cat. 5 or higher, 100 m maximum cable length; Fiber optic: FX Multi-Mode, LX Single-Mode
• Optical fiber type: Single-mode and multi-mode
• Packet throughput: 148800 pkt/s
• Controls: 12 x DIP switch: Alarm function power supplies and ports 1 … 10
• Indicators: Device: LED (PWR, RPS) green: Power supply (primary), redundant power supply (secondary); LED (ALM) red: Alarm; LED (LNK/ACT, 100) green, LED (OFFLINE) red: Status fiber optic ports; per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT ports 1 … 8

Connection Data

• Connection technology: communication/fieldbus: Copper cable: 8 x RJ-45; Fiber optic: 2 x SFP; LC fiber-optic connector
• Connection technology: supply: 1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 231-106/026-000

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 162 mm / 6.378 inch
• Depth: 120 mm / 4.724 inch

Mechanical Data

• Weight: 922.000 g
• Color: Black
• Housing material: Aluminum
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C (UL max. +60 °C)
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP30
• Relative humidity (without condensation): 95 %
• Mounting type: DIN-35 rail
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: Per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: TW
• GTIN: 4045454665951
• Customs tariff number Sales Organisation Germany: 85176200000
