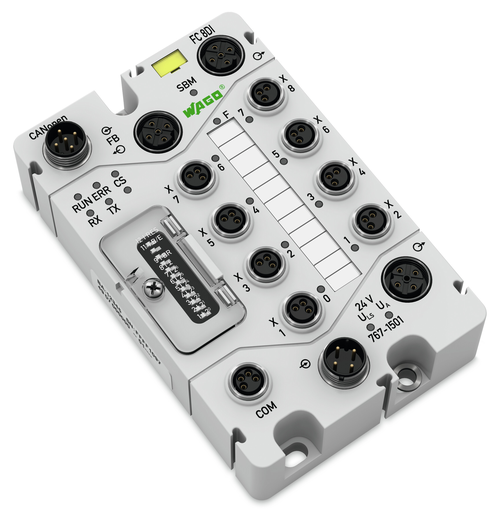

WAGO 767-1501

767-1501 WAGO 767-1501

WAGO 767-1501
Part # 767-1501
Manufacturer WAGO
GTIN 4045454545130
Condition New
Price: $ 451.60

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SPDWY FC CANOPEN 8DI 24V DC
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
CANopen fieldbus coupler DC 24 V incl. 8 digital inputs (8 x M8)

Features

  • 1 x module marker (WMB), yellow
  • 1 x channel marking strip
  • 2 x M8 protective cap

Approvals

  • UL International Germany GmbH, UL, E175199 Sec.5, UL 508

Specifications

Technical Data

  • Communication: CANopen
  • Number of expandable modules: 64
  • Number of digital inputs: 8
  • Total number of channels (module): 8
  • Signal type: Voltage
  • Sensor connection: 8 x (2-wire, 3-wire)
  • Input characteristic: High-side switching || Type 1, per IEC 61131-2
  • Input filter (digital): 0.1 ms || 0.5 ms || 3 ms || 15 ms || 20 ms
  • Input current per channel for signal (1) (typ.): 2.8 mA
  • Voltage range for signal (0): −3 … +5 VDC
  • Voltage range for signal (1): 15 … 30 VDC
  • Baud rate: 1 MBd (125/ 500/ 1000 kbit/s; Auto-baudrate detection)
  • Transmission medium: Copper cable
  • Parameterizable functions: I/O diagnostics (per module): Short circuit/overload (encoder supply); Undervoltage (ULS + UA) || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: 0/1 || Input filter (per channel): 0.1/ 0.5/ 3 /15 /20 ms/ Filter "Off" || Inversion (per channel): On/Off
  • Protection: Reverse voltage protection for ULS + Uo; Short circuit protection for sensor supply
  • Station addresses: 1 … 127 (adjustable via operation panel)
  • Communication profile: DS-301 V4.01
  • Input and output (fieldbus) process image (max.): 512 Byte/512 Byte
  • Supply voltage (system and sensor): 24 VDC(-25 … +30 %); Logic and sensors (ULS)
  • Power consumption (system and sensor): 85 mA
  • Power consumption, system and sensor (note): + sensors (max. 400 mA)
  • Supply voltage (field): 24 VDC (-25 … +30 %); Actuators (UA), for transmission only
  • Power consumption, field supply (module with no external load): 5 mA
  • Isolation: 500 V supply/system bus/fieldbus
  • Indicators: LED (RX, ERR, TX, F) red: Input buffer, bus error, output buffer, input error status; LED (SBM, CS) green/red: System bus master, fieldbus coupler status; LED (RUN, ULS, UA) green: Fieldbus status, power supply status; LED (0 … 7) yellow: Status DI 1 … DI 8; Non-retentive displays
  • Current carrying capacity (supply connections): 8 A
  • Connection of 2-wire BEROs: Admissible closed current: 1.5 mA (max.)

Connection Data

  • Connection technology: communication/fieldbus: CANopen: 1 x M12 socket; 5-pole; A-coded
  • Connection technology: inputs/outputs: 8 x M8 socket; 3-pole
  • Connection technology: field supply: 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket, 4-pole, A-coded
  • Connection technology: system supply: 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded
  • Connection technology: system bus: 1 x M12 socket, 5-pole, B-coded, shielded
  • Connection technology: device configuration: 1 x M8 socket; 4-pole (USB standard 1.1)
  • Connection requirement, permissible cable length: 30 m
  • Connection requirement (permissible cable type): Digital inputs: unshielded

Physical Data

  • Width: 75 mm / 2.953 inch
  • Height: 35.7 mm / 1.406 inch
  • Depth: 117 mm / 4.606 inch

Material Data

  • Housing material: Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
  • Fire load: 0.000 MJ
  • Weight: 377.000 g
  • Conformity marking: CE
  • Encapsulation: Polyurethane (PUR), halogen/silicon-free

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 60 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP67
  • Protection class: III
  • Operating altitude: −1000 … 2000 m; Air pressure: 1080 … 795 hPa
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: 5g per IEC 60068-2-6
  • Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
  • EMC immunity to interference: Per EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-4
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 0.1 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 0.5 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454545130
  • Customs tariff number Sales Organisation Germany: 85176200000
: *
: *
: *
