WAGO 753-429

753-429 WAGO 753-429

WAGO 753-429
Part # 753-429
Manufacturer WAGO
GTIN 4045454473969
Condition New
Price: $ 39.75

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2DI 60V DC 3.0ms
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

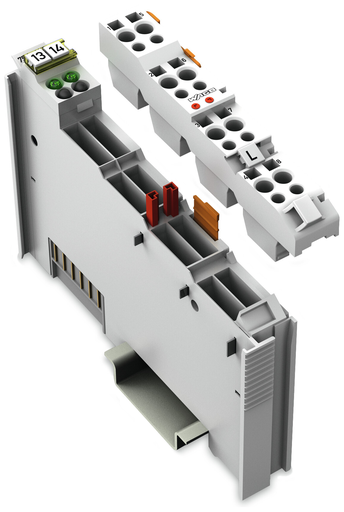

2-Channel digital input module DC 60 V 2- to 4-conductor-connection

Features

Approvals

  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
  • TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
  • National Radio Research Agency, KC, MSIP-REM-W43-DIM750, Article 58-2, Clause 3
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0

Specifications

Notes

  • Note: Pluggable connectors and coding fingers (753 Series) are not included.

Technical Data

  • Number of digital inputs: 2
  • Total number of channels (module): 2
  • Signal type: Voltage
  • Voltage signal type: 60 VDC
  • Supply voltage (sensor): 60 VDC
  • Sensor connection: 2 x (2-wire, 3-wire, 4-wire)
  • Input characteristic: High-side switching
  • Input filter (digital): 3 ms
  • Input current per channel for signal (1) (typ.): 2.9 mA
  • Voltage range for signal (0): −7.5 … +12 VDC
  • Voltage range for signal (1): 44 … 75 VDC
  • Input data width (internal) (max.): 2 bits
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 2.5 mA
  • Supply voltage (field): 60 VDC (-20 … +25 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
  • Isolation: 500 V system/field
  • Indicators: LED (A, C) green: Status DI 1, DI 2
  • Number of incoming power jumper contacts: 3
  • Number of outgoing power jumper contacts: 3
  • Current carrying capacity (power jumper contacts): 10 A

Connection Data

  • Connection technology: inputs/outputs: 8 x CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 69.8 mm / 2.748 inch
  • Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Wiring interface: Pluggable

Material Data

  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.887 MJ
  • Weight: 52.000 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: Per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-4
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821867425
  • Customs tariff number Sales Organisation Germany: 85389099990
: *
: *
: *
