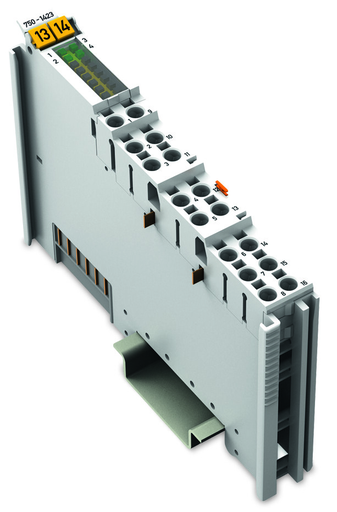

WAGO 750-1423

750-1423 WAGO 750-1423

WAGO 750-1423
Part # 750-1423
Manufacturer WAGO
GTIN 4050821131403
Condition New
Price: $ 92.78

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
4DI 24V DC 0.2ms/3-wire/LSS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
4DI 24V DC 0.2ms/3-wire/LSS

Features

Approvals

  • RINA Germany GmbH, RINA, ELE066419XG
  • Lloyds Register EMEA, LR, 02/20026 (E6)
  • TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
  • Nippon Kaiji Kyokai, NK, TA17255M
  • CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
  • Korean Register of Shipping, KR, KR HMB05880-AC001
  • TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
  • Polski Rejestr Statków, PRS, TE/2236/880590/19
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • Bureau Veritas S.A., BV, 30389/B0 BV
  • American Bureau of Shipping, ABS, 19-HG1821926
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
  • National Radio Research Agency, KC, MSIP-REM-W43-DIM750, Article 58-2, Clause 3

Specifications

Technical Data

  • Number of digital inputs: 4
  • Total number of channels (module): 4
  • Signal type: Voltage
  • Voltage signal type: 24 VDC
  • Supply voltage (sensor): 24 VDC
  • Sensor connection: 4 x (3-wire)
  • Input characteristic: Low-side switching
  • Input filter (digital): 0.2 ms
  • Input current per channel for signal (0) (typ.): 2.5 mA
  • Input current per channel for signal (0) (min.): -2.3 mA
  • Input current per channel for signal (0) (max.): -2.7 mA
  • Input current per channel for signal (1) (typ.): -0.6 mA
  • Voltage range for signal (0): (UV - 5 V) … UV DC
  • Voltage range for signal (1): −3 VDC … (UV - 15 V)
  • Input data width (internal) (max.): 4 bits
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 7 mA
  • Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
  • Isolation: 500 V system/field
  • Indicators: LED (1-4) green: Status DI 1 … DI 4
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Current carrying capacity (power jumper contacts): 10 A

Connection Data

  • Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Conductor type 1: F-st
  • Conductor type 2: S || Solid
  • Conductor type (1): Fine-stranded

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 69 mm / 2.717 inch
  • Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Wiring interface: Fixed

Material Data

  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.824 MJ
  • Weight: 44.000 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: 4g per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2, marine applications
  • EMC emission of interference: Per EN 61000-6-3, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821131403
  • Customs tariff number Sales Organisation Germany: 85389099990
: *
: *
: *
