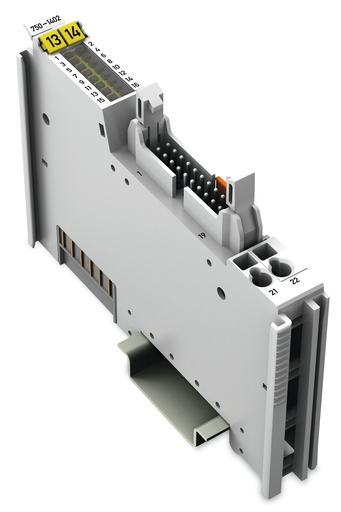

Features

Approvals

• Lloyds Register EMEA, LR, 02/20026 (E6)
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• RINA Germany GmbH, RINA, ELE066419XG
• Nippon Kaiji Kyokai, NK, TA17255M
• TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• American Bureau of Shipping, ABS, 19-HG1821926
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• Bureau Veritas S.A., BV, 30389/B0 BV
• Korean Register of Shipping, KR, KR HMB05880-AC001
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• National Radio Research Agency, KC, MSIP-REM-W43-DIM750, Article 58-2, Clause 3

Specifications

Technical Data

• Number of digital inputs: 16
• Total number of channels (module): 16
• Signal type: Voltage
• Voltage signal type: 24 VDC
• Supply voltage (sensor): 24 VDC
• Sensor connection: 16 x (1-wire)
• Input characteristic: Low-side switching
• Input filter (digital): 3 ms
• Input current per channel for signal (0) (typ.): 2.3 mA
• Input current per channel for signal (0) (min.): -2.1 mA
• Input current per channel for signal (0) (max.): -2.4 mA
• Input current per channel for signal (1) (typ.): -0.6 mA
• Voltage range for signal (0): (UV - 5 V) … UV DC
• Voltage range for signal (1): −3 VDC … (UV - 15 V)
• Input data width (internal) (max.): 16 bits
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 25 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
• Isolation: 500 V system/field
• Indicators: LED (1-16) green: Status DI 1 … DI 16

Connection Data

• Connection technology: inputs/outputs: 20 x Male connector; 20-pole
• Connection technology: field supply: 2 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Connection type 2: Field supply
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 74.1 mm / 2.917 inch
• Depth from upper edge of DIN-rail: 66.9 mm / 2.634 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Wiring interface: Fixed

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 1.060 MJ
• Weight: 41.129 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454898250
• Customs tariff number Sales Organisation Germany: 85389099990
